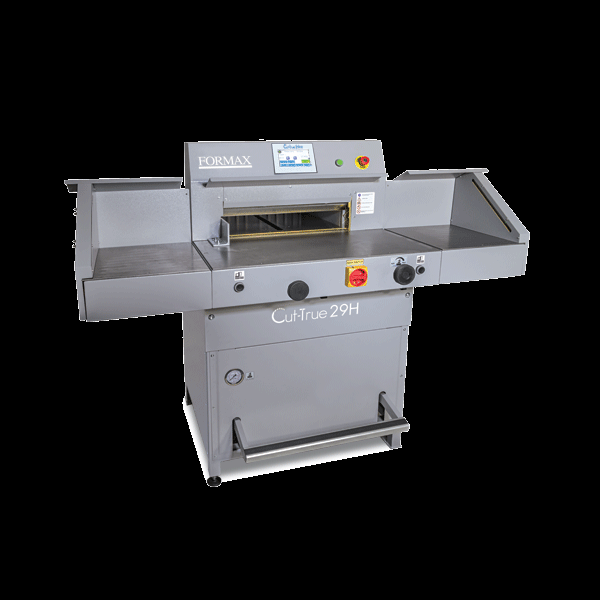

Formax Cut-True 29H Hydraulic Guillotine Paper Cutter
secure transactionFormax Cut-True 29H Hydraulic Guillotine Paper Cutter
The Formax Cut-True 29H Hydraulic Guillotine Paper Cutter is a heavy-duty precision cutting solution designed for industrial and in-plant printing environments. It features a robust hydraulic clamp and blade carrier system, allowing operators to cut large paper stacks up to 20.5” wide and 3.15” (80 mm) high with accuracy of 0.1mm. The system offers programmable job storage for up to 100 jobs, and an intuitive touchscreen interface for easy operation.
Equipped with an LED cutting line and an infrared safety curtain, the 29H ensures crisp, precise cuts while maintaining operator safety. The false clamp minimizes the risk of marking sensitive paper stock, and side tables (optional) provide additional workspace for maneuvering large sheets. With advanced features like hydraulic pressure adjustment, automatic blade return, and a safety key lock, the Cut-True 29H is perfect for producing high-quality brochures, invitations, business cards, and more.
Formax Cut-True 29H-Comes Stadard With:
- Hardened steel blade for long-lasting precision
- Hydraulic clamp and blade carrier system for accurate cuts
- LED Cutting Line for visual precision
- Intuitive touchscreen control panel with programmable job storage (up to 100 jobs)
- Infrared safety curtain (light beam) for operator safety
- Automatic blade return from any position
- False Clamp to minimize paper marking
- Foot Pedal Pre-Clamp for alignment verification
- External blade depth adjustment
- Two-hand operation for safety
- Blade Change Safety Tool included
- Internal light to illuminate cutting area
- Solid steel blade carrier
- Calibrated fine-tuning back gauge knob (accuracy to 0.1mm)
- Key Lock for machine security
- Transparent rear safety guard
Formax Cut-True 29H Hydraulic Guillotine Paper Cutter
| Product Name | Formax Cut-True 29H Hydraulic Guillotine Paper Cutter |
| Cutting Action | Dual-button hydraulic operation |
| Maximum Cutting Width | 20.5” (520 mm) |
| Maximum Paper Stack Height | 3.15” (80 mm) |
| Programmable Jobs | Up to 100 jobs / 100 steps |
| Touchscreen Features | Program jobs, inches/mm toggle, paper eject function, business card mode |
| Minimum Cut Length | With False Clamp: 2.36” (60 mm) / Without False Clamp: 1.18” (30 mm) |
| Table Size | 30.75” W x 15.75” D (781 x 400 mm) |
| Optional Wide Side Tables | 56” W x 15.75” D (1422 x 400 mm) |
| Clamp Style | Automatic, Hydraulic |
| Hydraulic Pressure Range | 700 - 4,500 psi (49 - 316 kg/cm²) |
| Back Gauge Adjustment | Fully programmable via touchscreen, precise to 0.1 mm |
| Blade Change Safety Tool | Included |
| Infrared Safety Curtain | Shuts down operation if interrupted |
| Foot Pedal Pre-Clamp | Included |
| LED Cutting Line | Yes |
| False Clamp | Minimizes marking sensitive stock, removable and storable |
| Dimensions (Standard) | 49.2” H x 34” W x 53.2” D (1250 x 864 x 1352 mm) |
| Dimensions (With Side Tables) | 49.2” H x 61.5” W x 53.2” D (1250 x 1563 x 1352 mm) |
| Weight | 1,014 lbs (460 kg) |
| Power Supply | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
