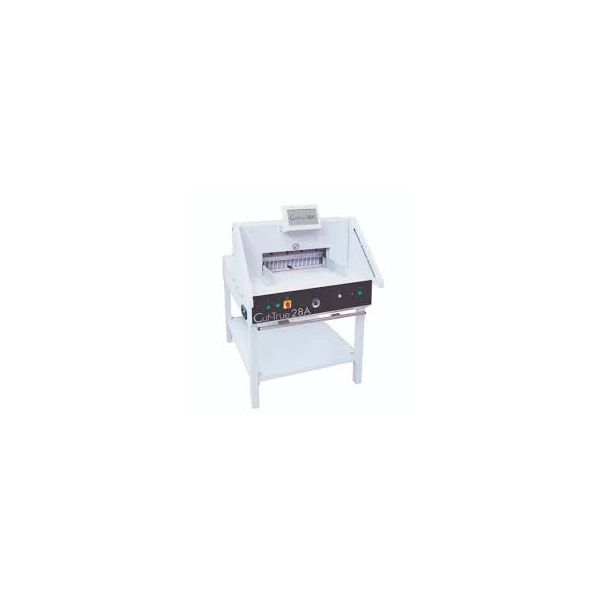

Formax Cut-True 28A
secure transactionFormax Cut-True 28A
The Cut-True 28A is a fully automatic, heavy-duty hydraulic paper cutter built for high-volume and precision-driven production environments. With a generous 20.1-inch cutting width and a capacity of up to 3.15 inches (approximately 800 sheets), it combines power with precision. The intuitive touchscreen control panel allows for easy programming of cutting sequences, while the hydraulic clamp and electronically-controlled blade deliver clean, consistent cuts every time.
Designed for commercial printers and production houses, the 28A is equipped with comprehensive safety features including an infrared safety curtain, two-handed cut activation, and automatic blade return. The durable metal construction and advanced internal components ensure long-term reliability and accuracy under heavy workloads.
Formax Cut-True 28A
| Model | Cut-True 28A |
| Type | Fully Automatic Hydraulic Paper Cutter |
| Cutting Width | 20.1 inches (510 mm) |
| Max Cutting Height | 3.15 inches (80 mm) (approx. 800 sheets, 20 lb bond) |
| Max Cutting Depth | 20 inches (508 mm) |
| Clamp Mechanism | Hydraulic – Automatic pressure adjustment |
| Blade Activation | Hydraulic – Electronically controlled |
| Back Gauge Movement | Motorized with precision adjustment |
| Control Panel | Full-color touchscreen with programmable memory (99 jobs) |
| Cutting Line Indicator | LED Red Optical Line |
| Safety Features | Infrared Safety Curtain, Two-Hand Cut, Blade Lock, Auto Return |
| Construction | Heavy-duty steel frame with anti-slip base |
| Power Supply | 220V, 50/60Hz, Single Phase |
| Machine Dimensions (W x D x H) | Approx. 40" x 36" x 54" (1016 x 914 x 1372 mm) |
| Shipping Weight | Approx. 620 lbs (281 kg) |
| Ideal For | Commercial print shops, bindery operations, production facilities |
