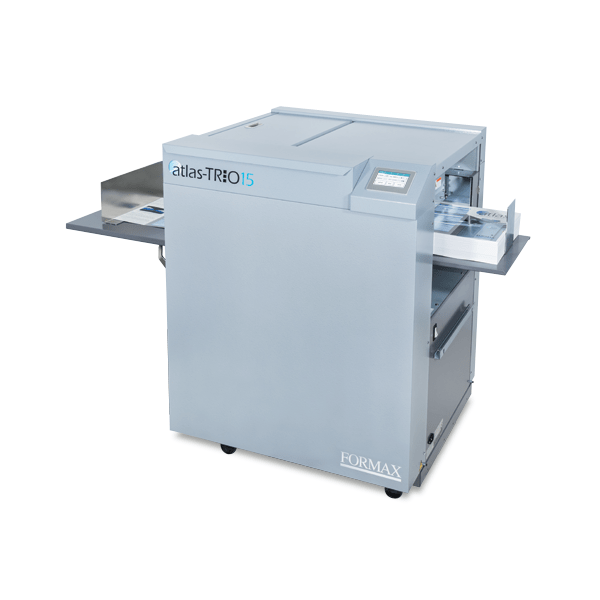

Formax Atlas TRIO15 Multi-Function Slitter/Cutter/Creaser
secure transactionFormax Atlas TRIO15 Multi-Function Slitter/Cutter/Creaser
The Formax Atlas-TRIO15 Multi-Function Slitter/Cutter/Creaser is an advanced, fully-automated solution designed for high-efficiency finishing of business cards, postcards, brochures, booklet covers, and other printed materials. It combines slitting, cutting, and creasing in a single streamlined process, dramatically reducing production time while enhancing precision.
Equipped with a 4” color touchscreen interface, the Atlas-TRIO15 allows operators to easily program up to 150 custom jobs with pre-set, manual, or flexible operation modes. The machine accommodates sheets up to 13” W x 27.5” L and weights up to 350gsm. Its upper-belt tri-suction feeding system ensures accurate sheet separation, while the elevating feed table prevents misfeeds.
With speeds of up to 5,000 sheets per hour (single crease), and specialized modes for business cards and postcards, the Atlas-TRIO15 is ideal for on-demand finishing with outstanding reliability and flexibility.
Formax Atlas TRIO15 Multi-Function Slitter/Cutter/Creaser Comes standard with:
- 4” color touchscreen control panel
- Upper-belt tri-suction feed system
- Pre-set and programmable jobs (up to 150)
- Automatically elevating feed table
- Cut-mark sensor
- Double-feed detection
- Two standard slitting guides
- Adjustable catch tray for custom job sizes
- Handles large and heavy stocks
Formax Atlas TRIO15 Multi-Function Slitter/Cutter/Creaser
| Speed | • 24-up Business Cards (12” x 18”): up to 8 sheets/min • 4-up Postcards (12” x 18”): up to 10 sheets/min • 2 cut / 2 slit / 1 crease (8.5” x 11”): up to 15 sheets/min • 1 crease (8.5” x 11”): up to 5,000 sheets/hour |
| Feed Capacity | Pile height up to 4” |
| Paper Sizes | Standard: 8” – 13” W x 8” – 19” L (203 x 330mm / 483mm) Max: 13” W x 27.5” L (330 x 699mm) with optional Long Sheet Kit |
| Paper Weight | 32# bond – 130# cover (120 – 350gsm) |
| Programmable Jobs | Up to 150 |
| Dimensions (without stacker) | 33” W x 31” D x 43” H (838 x 787 x 1092 mm) |
| Dimensions (with stacker) | 63” W x 31” D x 43” H (1600 x 787 x 1092 mm) |
| Weight | 440 lbs (200 kg) |
| Power | 120 VAC |
| Options | Custom slitting guides Long sheet kit (up to 13” W x 27.5” L) Cut-mark sensor |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
