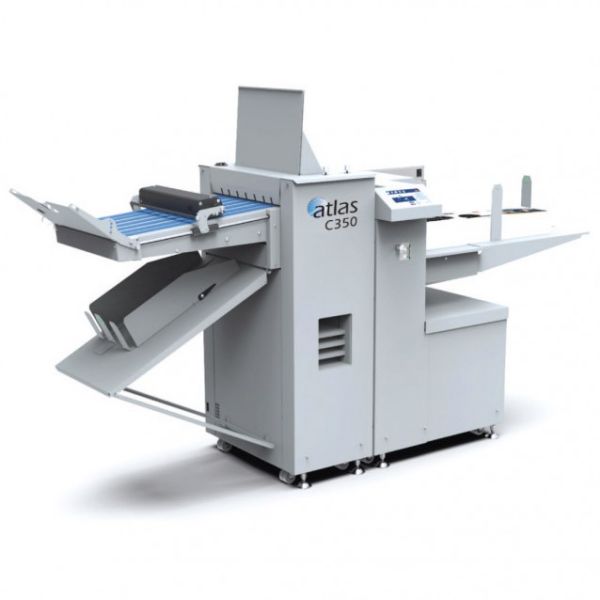

Formax Atlas C350P High-Speed Automatic Creaser/Folder With Pile Feeder
secure transactionFormax Atlas C350P High-Speed Automatic Creaser/Folder With Pile Feeder
The Formax Atlas C350P High-Speed Automatic Creaser/Folder With Pile Feeder is a heavy-duty, fully-automatic machine designed to crease, perforate, and fold digital toner-based prints in a single pass. It solves the problem of cracking in digital print materials and is ideal for producing book covers, brochures, promotional materials, and other professional print finishing applications.
Equipped with an intuitive color touchscreen control panel, the Atlas C350P allows operators to easily set up jobs by entering sheet length, weight, and fold type. The machine automatically calculates crease positions and optimizes performance for high-speed processing—up to 7,500 sheets per hour. Its lifetime guaranteed creasing matrix, robust metal construction, and optional Feed Table Extension (up to 51” long) make it suitable for high-volume production environments.
The addition of the Pile Feeder enhances media handling efficiency by enabling continuous high-capacity feeding for large production runs. Standard features include in-line rotary perforation, unlimited programmable jobs, and a flexible two-in-one outfeed configuration (belt conveyor and catch tray), ensuring maximum versatility.
Formax Atlas C350P High-Speed Automatic Creaser/Folder With Pile Feeder Comes Standard With:
- Color touchscreen control panel
- Vacuum top-feeding system
- Two-in-one outfeed (belt conveyor stacker + catch tray)
- In-line rotary perforation kit
- Unlimited programmable jobs
- Floating knife folding system
- Rugged metal construction
- Handles media up to 27.6” L (up to 51” with feed table extension)
- Pile feeder for high-capacity input
Formax Atlas C350P High-Speed Automatic Creaser/Folder With Pile Feeder
| Speed | Up to 6,000 sheets/hour (half fold) Up to 7,500 sheets/hour (single crease) |
| Sheet Size | Min: 3.7” x 8.3” (94 x 211 mm) Max: 15.2” x 27.6” (386 x 701 mm), up to 51” (1295 mm) with extension |
| Paper Thickness | 0.0035” – 0.0157” (75 – 400 gsm) |
| Creases per Sheet | Up to 30 |
| Min. Repeat Crease Distance | 0.004” (0.1 mm) |
| Programmable Jobs | Unlimited |
| Max Loading Capacity | Stack up to 7.9” (200 mm) |
| Outfeed | Belt conveyor stacker / catch tray |
| Dimensions | 84” L x 29” W x 55” H (2134 x 737 x 1397 mm) 118” L (2997 mm) with extension |
| Weight | 689 lbs (312 kg) |
| Power | 100-240 VAC, 8-4A, 50/60 Hz NEMA 6-15 (220V), NEMA 5-15 (110V) |
| Optional Feed Table Extension | Up to 51” L (1295 mm) |
| Pile Feeder | High-capacity input for continuous operation |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
