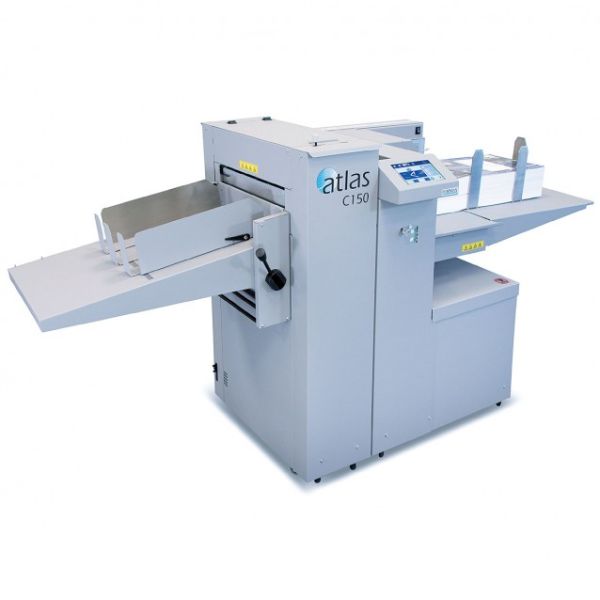

Formax Atlas C150P Automatic Air-Feed Programmable Creaser With Pile Feeder
secure transactionFormax Atlas C150P Automatic Air-Feed Programmable Creaser With Pile Feeder
The Formax Atlas C150P Automatic Creaser with Pile Feeder is an advanced finishing system engineered to solve common issues like toner cracking on digitally printed sheets. Featuring a powerful air-feed pile feeder, it can handle media stacks up to 7.8” high and run at speeds of up to 8,500 sheets per hour. Its heavy-duty creasing matrix ensures long-lasting durability, while the optical sensors and ultrasonic double-sheet detection provide reliable, uninterrupted performance.
The intuitive color touchscreen makes job setup simple, offering both pre-programmed templates and unlimited custom job storage. With the option to add a feed table extension, the C150P can handle extra-long sheets up to 51” in length, making it ideal for applications such as book covers, brochures, menus, postcards, and more.
Compact yet rugged, the Atlas C150P is built for high-volume print shops, in-plant production, and digital print facilities that demand professional-quality creasing and perforating without sacrificing speed or accuracy.
Formax Atlas C150P Automatic Air-Feed Programmable Creaser With Pile Feeder Comes Standard With:
-
Vacuum top feeding system
-
Heavy-duty creasing/rule matrix (lifetime guaranteed)
-
Color touchscreen control panel
-
Self-adjusting pile feed table
-
Optical sensors for accuracy
-
Fully automatic setup with quick job programming
-
Unlimited custom job storage
-
Handles media up to 27.5” long (51” with optional extension)
-
Adjustable outfeed stacker
-
Ultrasonic double sheet detection
-
In-line rotary perforation
-
Rugged all-metal construction for durability
Formax Atlas C150P Automatic Air-Feed Programmable Creaser With Pile Feeder
| Speed | Up to 8,500 sheets per hour |
| Sheet Size | Min: 3.89” x 8.3” (99 x 211mm) Max: 15” x 27.5” (51” long with extension) |
| Paper Thickness | 75 – 400gsm (0.0035” – 0.015”) |
| Creases per Sheet | Up to 30 |
| Minimum Repeat Crease Distance | 0.0039” (0.09mm, depending on paper weight) |
| Job Memory | Unlimited programmable jobs |
| Loading Capacity | Up to 7.8” (198mm) (4” for sheets longer than 27.5”) |
| Stacker Capacity | Up to 4.7” (119mm) |
| Dimensions | 67” L x 29” W x 46” H (1702 x 736 x 1168mm) 100” L with feed table extension |
| Weight | 551 lbs (250kg) |
| Power | 100–240V, 50/60Hz, 8–4A |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
