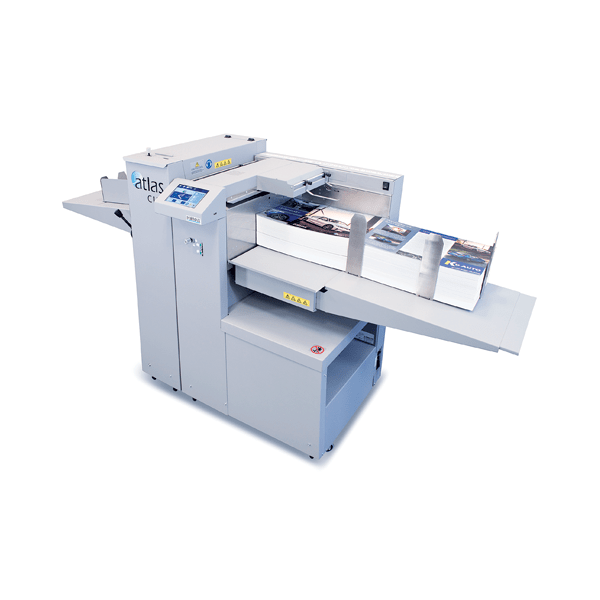

Formax ATLAS C150 High-Speed Automatic Creaser/Perforator
Formax ATLAS C150 High-Speed Automatic Creaser/Perforator
The ATLAS C150 High-Speed Automatic Creaser/Perforator is a powerful, user-friendly solution designed to eliminate the problem of cracking in toner-based digital prints. Equipped with a lifetime-guaranteed heavy-duty creasing matrix, it delivers highly accurate creasing at production speeds, making it ideal for professional print environments.
Its intuitive color touchscreen provides fully automatic setup and unlimited programmable job storage, ensuring operators can switch between tasks with minimal effort. The vacuum top-loading infeed handles stacks up to 7.8” high and automatically adjusts for different media types, ranging from 75 to 400gsm. For oversized applications, the optional feed table extension accommodates sheets up to 51” long.
With a rugged all-metal construction and compact design, the ATLAS C150 is built for reliability and efficiency. Optional kits add advanced features like cross/partial perforation and dual-blade up/down creasing in a single pass, making it a versatile finishing solution for book covers, brochures, invitations, and other high-quality print jobs.
Formax ATLAS C150 High-Speed Automatic Creaser/Perforator Comes Standard with:
-
Vacuum top feeding system
-
Heavy-duty creasing/rule matrix
-
Fully automatic setup with color touchscreen
-
Self-adjusting pile feed table
-
Optical sensors and ultrasonic double sheet detection
-
In-line rotary perforation
-
Quick-change creasing matrix kits
-
Unlimited programmable job storage
-
Adjustable outfeed stacker
-
Handles up to 27.5” long sheets (51” with extension option)
Formax ATLAS C150 High-Speed Automatic Creaser/Perforator
| Speed | Up to 8,500 sheets/hour |
| Sheet Size (Min) | 3.89” x 8.3” (99 x 211mm) |
| Sheet Size (Max) | 15” x 27.5” (381 x 699mm) / Up to 51” long with extension |
| Paper Thickness | 75 – 400gsm (0.0035” – 0.015”) |
| Creases per Sheet | Up to 30 |
| Minimum Repeat Crease | 0.0039” (0.09mm, depending on weight) |
| Programmable Jobs | Unlimited |
| Loading Capacity | Up to 7.8” (198mm) / 4” for sheets >27.5” |
| Stacker Capacity | Up to 4.7” (119mm) |
| Dimensions (Standard) | 67” L x 29” W x 46” H (1702 x 736 x 1168mm) |
| Dimensions (Extended) | 100” L x 29” W x 46” H (2540 x 736 x 1168mm) |
| Weight | 551 lbs (250kg) |
| Power | 100–240V, 50/60Hz, 8–4A |
