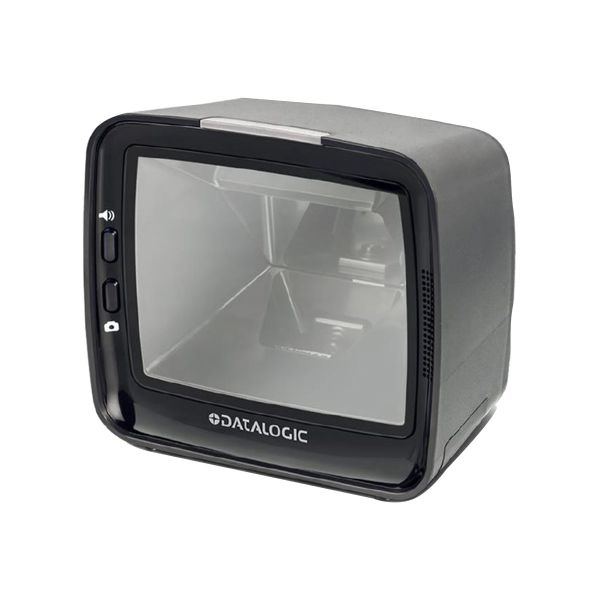

Datalogic Magellan 3450Vsi Presentation
Used in conjunction with HP Point of Sale Systems, the Datalogic Magellan 3450Vsi Presentation Scanner offers a reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read.
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Datalogic Magellan 3450Vsi Presentation - Barcode scanner - desktop - 2D imager - decoded - USB |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.4 cm |
| Dimensions & Weight / Height | 13.7 cm |
| Dimensions & Weight / Weight | 600 g |
| Dimensions & Weight / Width | 15.2 cm |
| Header / Brand | Datalogic |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | Aztec code, Data Matrix, MaxiCode, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417 |
| Features | 25 kV ESD protection (air discharge) |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| OK Notification | LED indicator |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Scan Element Type | 2D imager - LED |
| Scan Field Width | 0 cm - 20.3 cm |
| Scan Mode | Fixed projection |
| Sensor Resolution | 1280 x 1024 |
| Skew (Degrees) | 75 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 9.4 cm |
| Height | 13.7 cm |
| Weight | 600 g |
| Width | 15.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| General | |
| Color | Black |
| Type | Barcode scanner - desktop - stationary |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external - 3.66 m |
| Compliant Standards | IP52, IEC 62471 |
| Included Accessories | Mounting kit |
| Power | |
| Power Consumption Operational | 3.8 Watt |
| Power Device | Power adapter |
| Voltage | AC 120/230 V (50 Hz) |
| System Requirements | |
| OS Required | Microsoft Windows, Linux |
