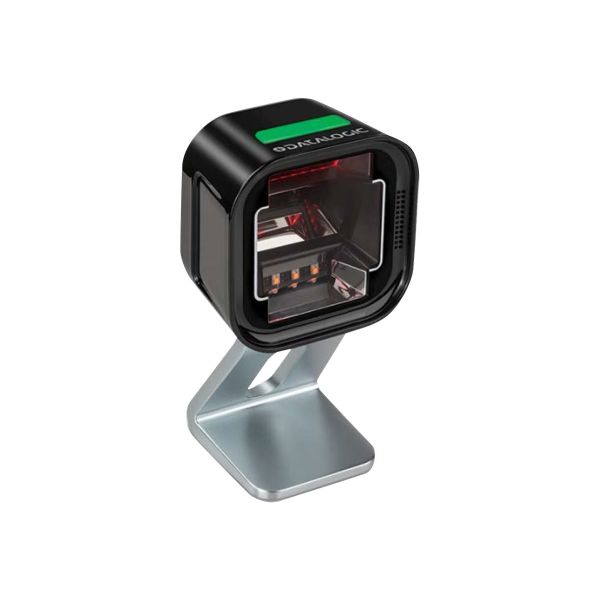

Datalogic Magellan 1500i Presentation

Be the first to review this product

Availability: Out of stock

SKU

9BU50AA

UPC Code

194721340702

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service.

Specifications

General Information
Category	Bar code equipment
Description	Datalogic Magellan 1500i Presentation - Barcode scanner - desktop - decoded - USB
Manufacturer	HP, Inc.
UNSPSC	43211701
Main Specifications
Dimensions & Weight / Depth	7.5 cm
Dimensions & Weight / Height	15 cm
Dimensions & Weight / Weight	240 g
Dimensions & Weight / Width	6 cm
Header / Brand	Datalogic
Miscellaneous / Product Color	Black
Packaged Quantity	1
Scanner / Type	Barcode scanner
System Requirements / OS Required	CentOS 6.0 CentOS 6.0 (64-bit) CentOS 7.0 CentOS 7.0 (64-bit) Microsoft Windows 7 Professional (32/64 bits) Microsoft Windows Embedded POSReady 2009 Microsoft Windows Embedded POSReady 7 32-bit Microsoft Windows Embedded POSReady 7 64-bit Red Hat Linux Ubuntu 14.04 LTS Ubuntu 14.04 LTS (64-bit) Windows 10 IoT Enterprise 64-bit Edition Retail Windows 10 Pro 64-bit Edition Windows 8.1 Pro 64-bit Edition Windows Embedded 8.1 Industry Pro 64-bit Edition
Barcode
Connectivity Technology	Wired
Decode Capability	QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Composites, Australian Post, British Post, Canadian Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Portuguese Post, Postnet, Royal Mail, Swedish Post, UPC, GS1 DataBar
Features	Green Spot technology
Interface Type	USB
Max Working Distance	30 cm
Minimum Bar Width	5 mil
Pitch (Degrees)	65
Print Contrast Signal (PCS)	25%
Scan Mode	Fixed projection
Sensor Resolution	1280 x 800
Skew (Degrees)	75
TTL Decoding	Decoded
Dimensions & Weight
Depth	7.5 cm
Height	15 cm
Weight	240 g
Width	6 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x USB - Type A
General
Color	Black
Type	Barcode scanner - desktop - stationary
Miscellaneous
Cables Included	1 x USB cable - 2 m
Compliant Standards	IEC 62471
Included Accessories	Tall tilting stand
Power
Electric Current Required	300 mA (standby), 500 mA (operating)
System Requirements
OS Required	Windows 10 IoT Enterprise 64-bit Edition Retail, Microsoft Windows 7 Professional (32/64 bits), Windows 10 Pro 64-bit Edition, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro 64-bit Edition, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 7 64-bit, CentOS 6.0, CentOS 6.0 (64-bit), CentOS 7.0, CentOS 7.0 (64-bit), Red Hat Linux, Ubuntu 14.04 LTS, Ubuntu 14.04 LTS (64-bit)
