Count– Strike Perf Ready Creasing and Numbering Machine

Count– Strike Perf Ready Creasing and Numbering Machine

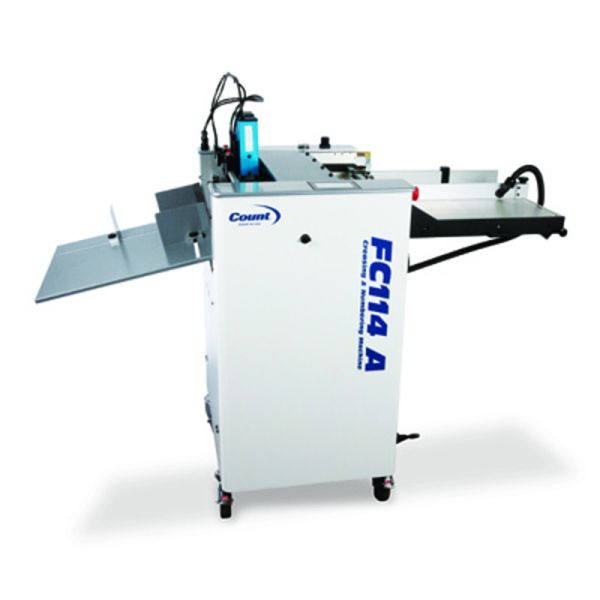

The FC114AP is a high-precision creasing and numbering machine that also includes strike perforation capability, designed specifically for the demands of digital print environments. This all-in-one solution is equipped with an air suction feed system for consistent and mark-free handling of coated, glossy, or heavy stocks, ensuring smooth operation even at high volumes. With its touchscreen interface and automated setup, the FC114AP allows for accurate creasing, numbering, and strike perfing in a single pass. Strike perforation enables clean, intermittent perforating lines—ideal for tear-off tickets, coupons, or forms. Built for production flexibility, this unit can handle various media sizes and weights while supporting multiple crease and perf locations per sheet. Whether you're producing event tickets, NCR forms, brochures, greeting cards, or promotional mailers, the FC114AP offers unbeatable speed, quality, and versatility for professional print shops.
Count– Strike Perf Ready Creasing and Numbering Machine
Model Name | FC114AP |
Functions | Creasing, Numbering, Strike Perforating |
Feed System | Top-Load Air Suction Feed |
Control Interface | Full-Color Touchscreen |
Strike Perforation | Yes – Programmable Intermittent Perf |
Max Processing Speed | Up to 7,500 sheets/hour |
Paper Weight Range | 80 – 400 gsm |
Max Sheet Size | 25.5" x 18.0" (64.8 x 45.7 cm) |
Min Sheet Size | 4.5" x 4.5" (11.4 x 11.4 cm) |
Numbering Heads | Up to 2 heads (crash or impact style) |
Max Crease/Perf Locations | Up to 12 creases / 4 perf lines per sheet |
Feed Accuracy | +/- 0.2 mm |
Touchscreen Features | Auto Setup, Job Memory, Batch Counting |
Applications | Tickets, Forms, Brochures, Cards, NCR, Book Covers |
Optional Accessories | Score Wheel, Micro-perf Kit, Conveyor Stacker |
Machine Dimensions | Approx. 60" x 27" x 45" (152.4 x 68.6 x 114.3 cm) |
Machine Weight | Approx. 275 lbs (125 kg) |
Electrical Requirements | 110V or 230V, 50/60 Hz (confirm before order) |
