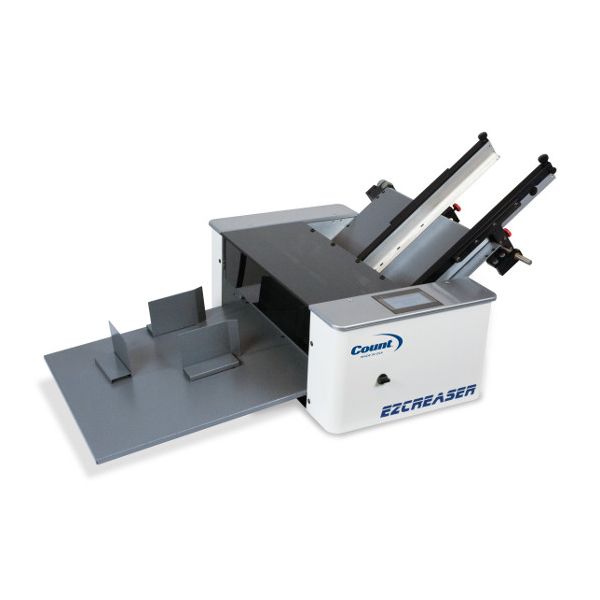

COUNT EZCreaser – Digital Creasing, Perforating & Scoring Machine
COUNT EZCreaser – Digital Creasing, Perforating & Scoring Machine
The COUNT™ EZCreaser is an all-in-one digital finishing solution designed for low to medium-volume production environments. Built for performance and simplicity, it offers CAM-actuated compression creasing, rotary perforation, and optional scoring, making it perfect for small commercial print shops, in-plant print centers, and digital finishing departments. With its top-feed automatic friction paper feeder, the EZCreaser ensures consistent sheet feeding for a wide range of stocks. The user-friendly touchscreen interface allows for one-touch automatic setup of common folds, including perfect bind hinges. The standard rotary perf wheel can be swapped out for optional micro-perf or scoring wheels for added versatility. Additional features include micro-lateral feed rail adjustments, a two-sided creasing rod (for narrow or wide creases), and support for popular fold types like Z-fold, gate fold, double parallel, and more. Ideal for applications such as brochures, book covers, greeting cards, and marketing materials.
COUNT EZCreaser – Digital Creasing, Perforating & Scoring Machine
Model Number | EZCREASER |
Functions | Creasing, Perforating, (Optional Scoring) |
Paper Feed Type | Top-Load Friction Feed |
Max Creasing Speed | 4,500 sheets/hour |
Max Perf/Score Speed | 12,000 sheets/hour |
Paper Weight Range | 60 – 350 gsm |
Max Sheet Size | 24.0" L x 17.0" W (61.0 x 43.2 cm) |
Min Sheet Size | 4.5" L x 4.5" W (11.4 x 11.4 cm) |
Max Crease Locations per Sheet | 12 |
Max Perf/Score Locations per Sheet | 4 |
Paper Fold Types Supported | Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind (No Hinge, Single Hinge, Double Hinge) |
Creasing Mechanism | CAM-Actuated Compression Crease |
Standard Accessories | Rotary Perforation Wheel Assembly |
Optional Accessories | Micro-Perf and Scoring Wheel Assemblies |
Feed Rail Adjustments | Micro-Lateral Adjustment |
Touchscreen Controls | Yes (with auto setup) |
Crease Rod | Two-Sided Die Rod (Wide/Narrow) |
Compatible Add-ons | COUNT™ KF-200 Inline Folder |
Dimensions (L x W x H) | 47.0" x 29.0" x 22.0" (119.4 x 73.7 x 55.9 cm) |
Weight | 144 lbs (66 kg) |
Electrical Requirements | 115 V, 60 Hz, 20 A or 230 V, 50 Hz |
