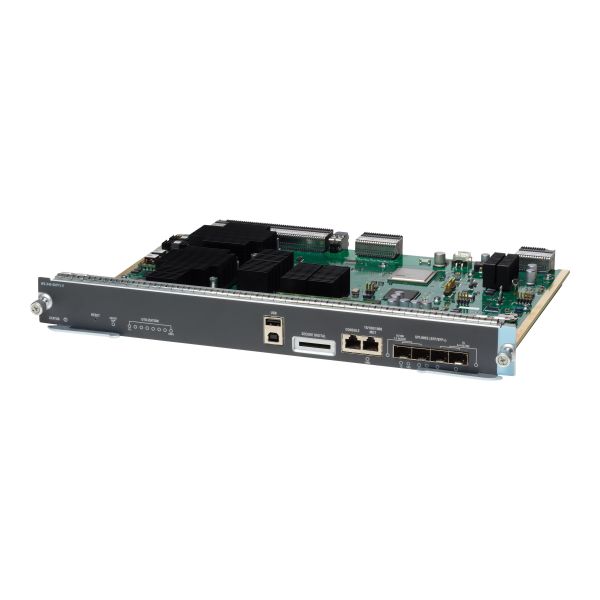

Cisco Supervisor Engine 7L-E
The Cisco Catalyst 4500E Supervisor Engine 7L-E is an enterprise-class borderless campus access and price/performance aggregation supervisor engine designed to provide 520 Gbps per system with E-Series chassis. The Cisco Catalyst 4500E Supervisor Engine 7L-E provides unprecedented performance with borderless services such as Flexible NetFlow (FNF) and hosted third-party applications. The Cisco Catalyst 4500E Supervisor Engine 7L-E builds on the widely deployed line of Cisco Catalyst 4500 supervisor engines and enhances its predecessors to provide nonblocking 48 Gbps per slot bandwidth with Flexible NetFlow for optimized application visibility.
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | Cisco Supervisor Engine 7L-E - Control processor - plug-in module |
| Manufacturer | Cisco Systems |
| MSRP | $13,800.00 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Control processor |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Communications | |
| Supported Flash Memory Cards | SD Memory Card |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Control processor |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 55022 Class A, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, GR-1089-CORE, VCCI Class A, KN24, GR-63-CORE, KN22 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300 386 |
| MTBF | 183,341 hours |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az |
| Connectivity Technology | Wired |
| Features | Uplink, DHCP support, VLAN support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF) |
| Form Factor | Plug-in module |
| Performance |
|
| Remote Management Protocol | RMON 1, RMON 2, CLI |
| Processor / Memory / Storage | |
| Flash Memory | 1 GB |
| Processors Installed | 1.5 GHz |
| RAM | 2 GB SDRAM |
