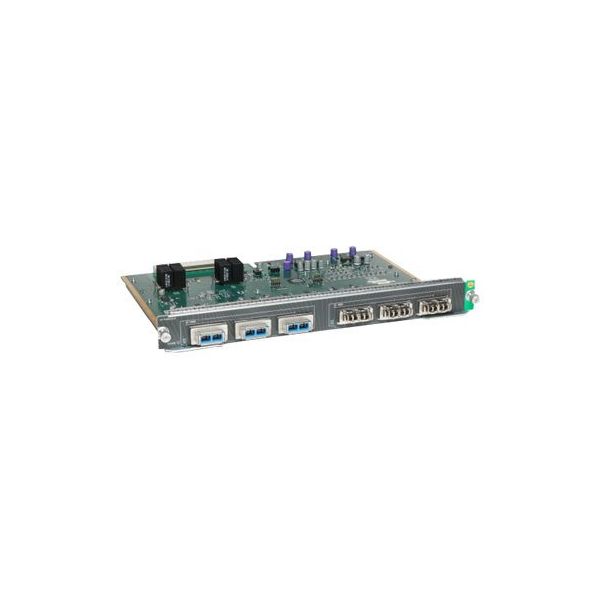

Cisco Line Card E-Series

Be the first to review this product

Availability: Out of stock

SKU

WS-X4606-X2-E=

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco Catalyst 4500 6-port E-Series 10 Gigabit Ethernet line card (2.5:1 oversubscribed) can be deployed for high-performance 10 Gigabit Ethernet aggregation in the campus, in small to medium networks as a core switch, or for high-performance wiring closets where additional 10 Gigabit Ethernet uplinks are required. The Cisco Catalyst 4500 E-Series 6-port 10 Gigabit Ethernet line card supports standard X2 optics as well as the Cisco TwinGig modules.

Specifications

General Information
Category	Network interface cards
Description	Cisco Line Card E-Series - Expansion module - 10 Gigabit X2 x 6 - for Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E
Manufacturer	Cisco Systems
MSRP	$17,310.38
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	27.3 cm
Dimensions & Weight / Height	3 cm
Dimensions & Weight / Width	36.2 cm
Header / Brand	Cisco
Miscellaneous / Product Color	Gray
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	10 Gigabit Ethernet
Networking / Data Transfer Rate	10 Gbps
Networking / Type	Expansion module
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Compatibility Information
Designed For	Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E
Dimensions & Weight
Depth	27.3 cm
Height	3 cm
Width	36.2 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	6 x 10GBase-X - X2
General
Device Type	Expansion module
Form Factor	Plug-in module
Manufacturer Warranty
Service & Support	Limited warranty - lifetime Limited warranty - advance hardware replacement - 10 days
Miscellaneous
Compliant Standards	Laser Class 1, UL 1950, EN 60950, CSA C22.2 No. 950, IEC 950, IEC 60950-1 Second Edition, EN 60950-1 Second Edition, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, FCC Part 15 J Class A, VCCI Class A, EN 55022 Class A, EN 55024 Class A, CISPR 22 Class A, AS/NZS 3548, NEBS level 3, GR-1089-CORE, GR-63-CORE, ETSI ETS-300386-2, EN 50121-4, RoHS
MTBF	535,717 hours
Networking
Capacity	Jumbo frame size: 9216
Compliant Standards	IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ad (LACP)
Connectivity Technology	Wired
Data Link Protocol	10 Gigabit Ethernet
Data Transfer Rate	10 Gbps
Features	PAgP support, Jumbo Frames support
Ports	10 Gigabit X2 x 6
Power
Power Consumption Operational	50 watt
