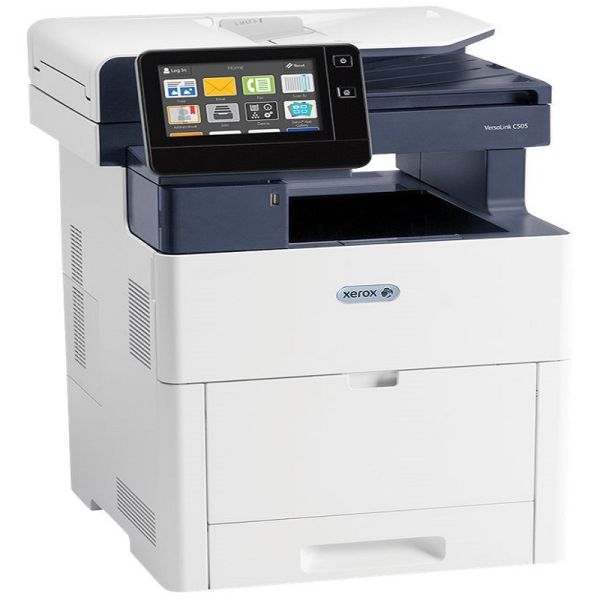

Xerox C505/XM VersaLink C505 Color Multifunction Printer - w/ Fax and Metered

• Fax and Metered Color Printer
• Device Type Multifunction printer
• Standard Memory 4 GB
• Speed Up to 45 ppm letter/Up to 43 ppm A4
• Processor 1.05 GHz
• Hard Disk Drive 320 GB
• Monthly Duty Cycle (max) 120000 pages
• Connectivity Ethernet 10/100/1000 Base-T, High-speed USB 3.0, Wi-Fi 802.11n
• Wi-Fi Direct with optional Wi-Fi Kit
• Paper Output Standard 400 sheets
• Print: Up to 1200 x 2400 dpi; Copy: Up to 600 x 400 dpi
• Voltage Required AC 120 V (50/60Hz)

Xerox C505/XM VersaLink C505 Color Multifunction Printer - w/ Fax and Metered

• General
  Device Type	Multifunction printer
  Fax Type	Plain paper
  Printing Technology	LED - color
  Monthly Duty Cycle (max)	120000 pages
  Recommended Monthly Volume	8000 pages
  Display Diagonal Size	7"
  Color Support	Color
  Display Features	Touch screen
  PC Connection Availability	Yes
  Connection Availability	Yes
  PC Connection	Gigabit LAN, USB host, NFC, USB 3.0
  Interface	Gigabit LAN, USB host, NFC, USB 3.0
  AirPrint Enabled	Yes
  Office Machine Features	Xerox Extensible Interface Platform (EIP), scan to e-mail, scan to network, scan to FTP, scan to SMB, scan to USB host
  Printing
  Max Printing Resolution	Up to 1200 x 2400 dpi (mono) / up to 1200 x 2400 dpi (color)
  Max Printing Speed	Up to 45 ppm (mono) / up to 45 ppm (color)
  Printer Drivers / Emulations	PCL 5e, PCL 6, PostScript 3, PDF, TIFF, HPGL, XPS, JPEG
  Automatic Duplexing	Yes
  First Print Out Time B/W	9 sec
  First Print Out Time Color	9 sec
  Connections
  Interfaces	USB host ¦ USB 3.0 ¦ Gigabit LAN - RJ-45
  Security Protocols & Features	Secure Print, SSL, TLS, Secure Fax, IP filtering, port blocking, AES-256, Secure Scan, Secure Email
  Operating System Support	Linux, MS Windows Server 2003, HP-UX 11i v3, MS Windows 7, MS Windows 2000 Server, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, Windows 8, Apple Mac OS X 10.10, Windows 10, Apple Mac OS X 10.11, macOS 10.12, SuSe Linux 13.2, Red Hat Enterprise Linux, IBM AIX 7.2, Oracle Solaris 11.3, Fedora 24
  Miscellaneous
  Warm-Up Time	11 sec
  First Copy Out Time B/W	5 sec
  First Copy Out Time Color	7 sec
  Compliant Standards	FIPS 140-2
  Pricing Type	Xerox Metered Supplies Program
  Copying
  Max Copying Speed	Up to 45 ppm (mono) / up to 45 ppm (color)
  Max Copying Resolution	Up to 600 x 400 dpi (mono) / up to 600 x 400 dpi (color)
  Max Document Enlargement	400%
  Max Document Reduction	25%
  Maximum Copies	999
  Automatic Duplexing	Yes
  Copying Features	ID Card Copy, collation copy, Edge Erase, Book Copy, Auto Background Suppression
  Scanning
  Automatic Duplexing	Yes
  Optical Resolution	600 x 600 dpi
  Grayscale Depth	8-bit
  Color Depth	24-bit
  Fax Machine
  Compatibility	Super G3
  Max Transmission Speed	33.6 Kbps
  Data Compression System	MH, MR, MMR, JBIG
  Fax Resolutions	600 x 600 dpi
  Memory
  Standard Memory	4 GB
  Hard Disk Drive	320 GB
  Environmental Standards
  ENERGY STAR Certified	Yes
  Environmental Parameters
  Sound Emission	33.6 dBA (idle) / 56.2 dBA (operating)
  Min Operating Temperature	50 °F
  Max Operating Temperature	89.6 °F
  Humidity Range Operating	15 - 85%
  Fax Machine Features
  Features	Fax forwarding
  Document & Media Handling
  Max Original Size	8.5 in x 14 in
  Original Type	Sheets
  Document Feeder Capacity	100 sheets
  Min Media Size	3 in x 5 in
  Max Media Size	A4/Legal
  Min Media Weight	60 g/m²
  Max Media Weight	220 g/m²
  Min Media Weight (lb)	16 lbs (Bond)
  Max Media Weight (lb)	43 lbs (Cover)
  Supported Media Type	Envelopes, plain paper, labels, recycled paper, bond paper, card stock, punched paper, preprinted paper
  Supported Media Sizes	Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
  Standard Media Capacity	700 sheets
  Max Media Capacity	3250 sheets
  Bypass Feeder Capacity	150 sheets
  Output Trays Capacity	400 sheets
  Document & Media Handling Details	ADF - 100 sheets size: 5.5 in x 5.5 in - 8.5 in x 14 in weight: 60 g/m² - 128 g/m²; weight (lbs): 16 lbs (Bond) - 32 lbs (Bond) ¦ Bypass tray - 150 sheets size: 3 in x 5 in - Legal (8.5 in x 14 in) weight: 60 g/m² - 220 g/m²; weight (lbs): 16 lbs (Bond) - 43 lbs (Cover) ¦ Input tray - 550 sheets size: 2.99 in x 7.48 in - Legal (8.5 in x 14 in) weight: 60 g/m² - 220 g/m²; weight (lbs): 16 lbs (Bond) - 43 lbs (Cover) ¦ Output tray - 400 sheets
  Speed Details	Printing: up to 43 ppm (A4) - B/W ¦ Printing: up to 43 ppm (A4) - color ¦ Printing: up to 45 ppm (Letter A) - B/W ¦ Printing: up to 45 ppm (Letter A) - color ¦ Copying: up to 43 ppm (A4) - B/W ¦ Copying: up to 43 ppm (A4) - color ¦ Copying: up to 43 ppm (A4) - B/W duplex ¦ Copying: up to 43 ppm (A4) - color duplex ¦ Copying: up to 45 ppm (Letter A) - B/W ¦ Copying: up to 45 ppm (Letter A) - color ¦ Copying: up to 45 ppm (Letter A) - B/W duplex ¦ Copying: up to 45 ppm (Letter A) - color duplex ¦ Printing: up to 37 ppm (Legal) - B/W ¦ Printing: up to 37 ppm (Legal) - color ¦ Printing: up to 42 ppm (A4) - B/W duplex ¦ Printing: up to 42 ppm (A4) - color duplex ¦ Printing: up to 44 ppm (Letter A) - B/W duplex ¦ Printing: up to 44 ppm (Letter A) - color duplex ¦ Printing: up to 22 ppm (Legal) - B/W duplex ¦ Printing: up to 22 ppm (Legal) - color duplex ¦ Scanning: up to 43 ipm (Letter A) - B/W ¦ Scanning: up to 42 ipm (Letter A) - color ¦ Scanning: up to 73 ipm (Letter A) - B/W duplex ¦ Scanning: up to 55 ipm (Letter A) - color duplex ¦ Scanning: up to 40 ipm (A4) - B/W ¦ Scanning: up to 40 ipm (A4) - color ¦ Scanning: up to 69 ipm (A4) - B/W duplex ¦ Scanning: up to 52 ipm (A4) - color duplex
  Power
  Voltage Required	AC 120 V (50/60Hz)
  Power Consumption Operational	730 Watt
  Power Consumption Standby	89 Watt
  Power Consumption Sleep	9 Watt
