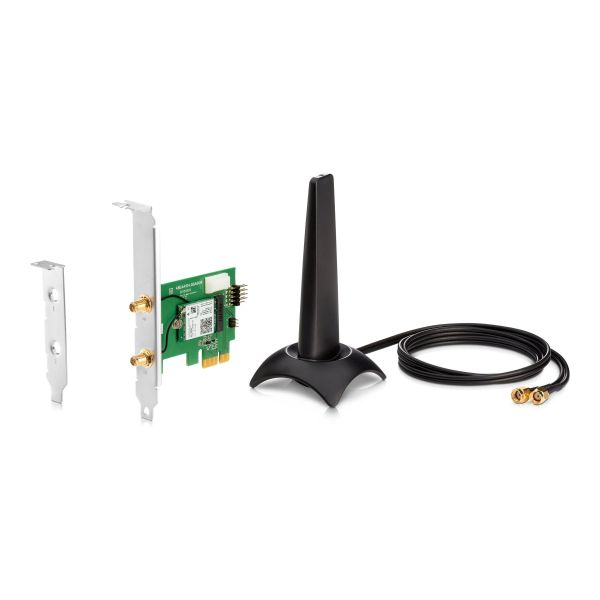

Intel AX210 - Network adapter

Be the first to review this product

Availability: Out of stock

SKU

340L7AA

UPC Code

195697639173

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Intel AX210 - Network adapter - M.2 2230 - Wi-Fi 6E, Bluetooth 5.2 - for Workstation Z4 G4, Z4 G5, Z6 G4, Z6 G5, Z8 G4

Specifications

General Information
Category	Network interface cards
Description	Intel AX210 - Network adapter - M.2 2230 - Wi-Fi 6E, Bluetooth 5.2 - for Workstation Z4 G4, Z4 G5, Z6 G4, Z6 G5, Z8 G4
Manufacturer	HP, Inc.
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	2.4 cm
Dimensions & Weight / Height	2.2 cm
Dimensions & Weight / Weight	2.8 g
Dimensions & Weight / Width	3 cm
Header / Brand	Intel
Miscellaneous / Product Color	Silver
Networking / Connectivity Technology	Wireless
Networking / Data Link Protocol	Bluetooth 5.2 IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Data Transfer Rate	2.4 Gbps
Networking / Type	Network adapter
Packaged Quantity	1
System Requirements / OS Required	Google Chrome OS Linux Windows 10
Antenna
Antenna	External
Compatibility Information
Designed For	HP Workstation Z4 G4, Z4 G5, Z6 G4, Z6 G5, Z8 G4
Dimensions & Weight
Depth	2.4 cm
Height	2.2 cm
Weight	2.8 g
Width	3 cm
Environmental Parameters
Humidity Range Operating	50 - 90% (non-condensing)
Max Operating Temperature	80 °C
Min Operating Temperature	0 °C
General
Device Type	Network adapter
Form Factor	Plug-in card
Interface (Bus) Type	M.2 2230
Miscellaneous
Compliant Standards	UL, CB, IEC 60950-1, UEFI
Encryption Algorithm	PEAP, WPA2, 128-bit AES, CCMP, EAP-SIM, EAP-AKA, WPA3, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2
Networking
Compliant Standards	IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6E
Connectivity Technology	Wireless
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2
Data Transfer Rate	2.4 Gbps
Features	WMM support, dual-stream (2x2), Wi-Fi Direct, 802.1x authentication, 2x2 MU-MIMO technology, Wi-Fi 6E technology
Frequency Band	2.4 GHz, 5 GHz, 6 GHz
Line Coding Format	1024 QAM
Spread Spectrum Method	OFDMA
Software / System Requirements
OS Required	Linux, Google Chrome OS, Windows 10
