- Optical Resolution: 600 dpi
- ADF Capacity: 80 Sheets
- TAA Compliant: Yes
- Scans 40/80 pages/images per minute (300 dpi) to 60/120 ppm/ipm (200 dpi)
- Convert documents into searchable PDF files with OneTouch
- Set up 9 OneTouch custom “scan-to” destinations
- Scan Color: Color
- Connectivity: USB 2.0 - Type B
- Duplex Scanner
- Dimensions (W x D x H): 12.5 x 9.4 x 26.8 in
- Weight: 9.2 lbs

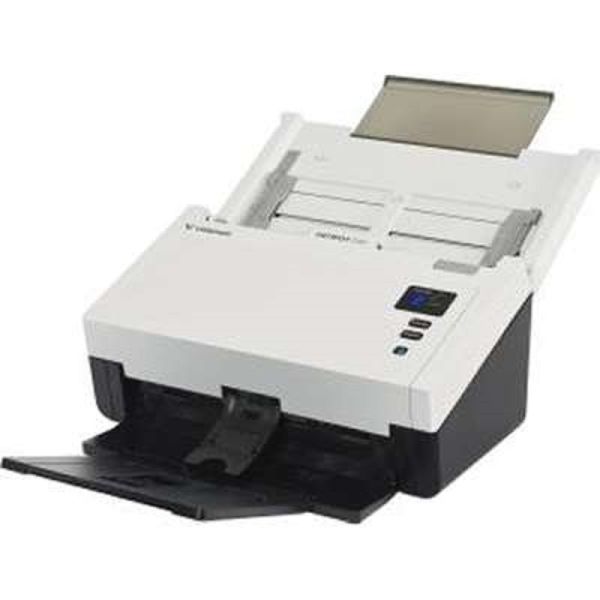

Visioneer Patriot D40 Document Scanner - PD40-U
Technical Information Large Format No Optical Resolution 600 dpi Scan Color Color Maximum Mono Scan Speed (ppm) 60 Maximum Color Scan Speed (ppm) 60 Maximum Mono Scan Speed (ipm) 120 Maximum Color Scan Speed (ipm) 120 ADF Capacity 80 Sheets Duplex Scanning Yes Paper Thickness 7–110 lbs. (27–413 g/m2) Plastic Card Embossed cards up to 1.25 mm thick Scanning Speeds 40 pages per minute / 80 images per minute @ 200 dpi Optical Resolutions 200, 300, and 600 dpi Interpolated Resolutions 75, 100, 150, 400, 500, and 1200 dpi Internal Bit Depth 48-bit color, 16-bit grayscale, 1-bit bitonal (black & white) Output Bit Depth 24-bit color, 8-bit grayscale, 1-bit bitonal (black & white) Scan Method Duplex Automatic Document Feeder (ADF) Image Sensor CCD (Charge-Coupled Device) Light Source White LED lamp Certifications FCC Class B, RoHS, ENERGY STAR Operating Temperature 40° ~ 95° F (5° ~ 35° C without condensation) Relative Humidity 10% ~ 90% (@35° C without condensation) Power Supply APD (DA-48M24) Interfaces/Ports USB Yes Physical Characteristics Height 26.8 in Width 12.5 in Depth 9.4 in Weight 9.2 lbs Miscellaneous Environmentally Friendly Yes
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
