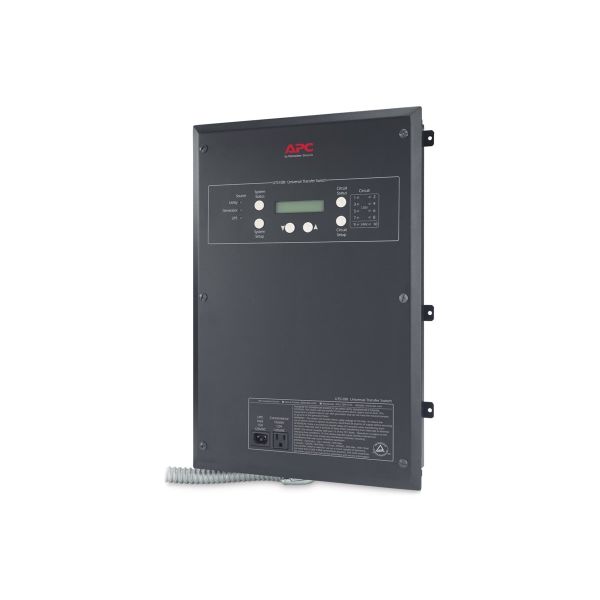

UNIVERSAL TRANSFER SW 10CIRCUIT 120/240V
The APC Universal Transfer Switch is designed for reliable performance in various environments, from -25°C to 40°C, making it suitable for diverse applications. This bypass switch features a built-in maintenance bypass for added convenience, ensuring continuous operation even during maintenance periods. The unit's LCD display provides clear visibility of critical information, while LED indicators keep users informed about the device's status. Compatible with both AC 120/240 V input and AC 120 V output, this switch is versatile and easy to integrate into existing systems.
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | UNIVERSAL TRANSFER SW 10CIRCUIT 120/240V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,160.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.4 cm |
| Dimensions & Weight / Height | 59.5 cm |
| Dimensions & Weight / Weight | 12.5 kg |
| Dimensions & Weight / Width | 39.4 cm |
| Header / Brand | APC |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Voltage Required | AC 120/240 V |
| Product Type | Bypass switch |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8.4 cm |
| Height | 59.5 cm |
| Weight | 12.5 kg |
| Width | 39.4 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 21.3 cm |
| JTFpping Height | 67.9 cm |
| JTFpping Weight | 13.2 kg |
| JTFpping Width | 47.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -25 °C |
| General | |
| Device Type | Bypass switch - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable |
| Compliant Standards | UL |
| Features | LCD display, built-in maintenance bypass, LED indicators |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C14, power NEMA L14-30 |
| Input Voltage | AC 120/240 V |
| Output Voltage | AC 120 V |
| Power Output Connectors Details | 1 x power NEMA 5-15 |
