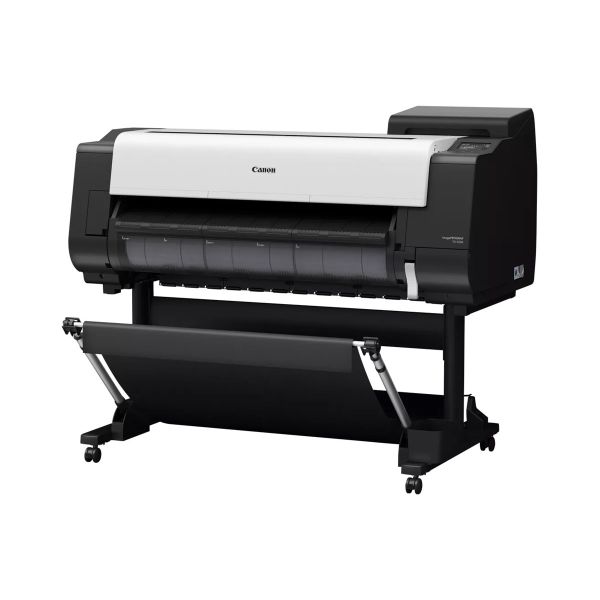

Canon imagePROGRAF TX-3200
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | Canon imagePROGRAF TX-3200 - 36" large-format printer - color - ink-jet - Roll (91.4 cm) - 2400 x 1200 dpi up to 3.3 ppm (color) - USB 2.0, Gigabit LAN, Wi-Fi(n), USB host |
| Manufacturer | Canon |
| MSRP | $12,141.00 |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth |
|
| Dimensions & Weight / Height |
|
| Dimensions & Weight / Weight |
|
| Dimensions & Weight / Width | 139 cm |
| Document & Media Handling / Large Format Printer Size | 36" |
| Header / Brand | Canon |
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology |
|
| Printer / Type | Large-format printer |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 98.4 cm |
| Height | 116.8 cm |
| Weight | 103 kg |
| Width | 139 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 90.3 cm |
| Height (JTFpping) | 103.3 cm |
| Weight (JTFpping) | 157 kg |
| Width (JTFpping) | 162.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Max Operating Temperature | 30 °C |
| Min Operating Temperature | 15 °C |
| Sound Emission (Idle) | 35 dBA |
| Sound Emission (Operating) | 51 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Gold |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Printer Type | 36" large-format printer - ink-jet - color |
| Media Handling | |
| Max Media Size | Roll (91.4 cm) |
| Max Media Size (Custom) | 917 mm |
| Max Printing Length | 18 m |
| Media Sizes | Roll A2 (42 cm), Roll (25.4 cm), Roll (40.6 cm), Roll (43.2 cm), Roll (30.5 cm), Roll (20.3 cm), Roll (38.1 cm), Roll (30 cm), Roll (15.2 cm), Roll (91.4 cm), Roll (76.2 cm), Roll (32.9 cm), Roll (35.6 cm), Roll (84.1 cm), Roll A1 (59.4 cm), Roll (61 cm), Roll JIS B2 (51.5 cm), Roll (72.8 cm), Roll A3 (29.7 cm), Roll JIS B4 (25.7 cm), Roll (50.8 cm), Roll (50 cm), Roll (60 cm), Roll (80 cm), Roll (55.88 cm), Roll (45.7 cm), Roll (86.4 cm) |
| Media Thickness Range | 0.07 mm - 0.8 mm |
| Media Type | Plain paper |
| Min Media Size (Custom) | 152 mm |
| Miscellaneous | |
| Compliant Standards | cTUVus, FCC Part 15 B, FCC Part 15 C |
| Consumables Included |
|
| Included Accessories | Stand, 3" core adapter, roll holder |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 115 Watt |
| Power Consumption Sleep | 0.3 Watt |
| Power Consumption Stand by | 2 Watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Printer | |
| AirPrint Enabled | Yes |
| Connectivity Technology | Wireless |
| Ink Cartridge Configuration | 5 individual ink tanks |
| Ink Palette Supported (Colors) | 5-ink - cyan, magenta, yellow, black, matte black |
| Ink Type | Canon LUCIA TD pigment ink |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host |
| Language Simulation | HP GL/2, HP RTL, PDF, JPEG, CALS G4 |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 5 pl |
| Nozzle Configuration | 5120 nozzles (matte black), 4 x 2560 nozzles (cyan, magenta, yellow, black) |
| Print Speed | Up to 3.3 ppm - fast economy - Roll A1 (61.0 cm x 91.4 m) |
| Printer Features | Borderless printing, Hard Disk Drive Encryption |
| RAM | |
| RAM Installed (Max) | 2 GB |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2016 (64-bit), Microsoft Windows Server 2019 (64-bit), Microsoft Windows Server 2022, Apple macOS 11.7.10 - 14.x |
| Software Included | Drivers & Utilities, PosterArtist Lite |
| Storage | |
| Hard Drive | 500 GB |
