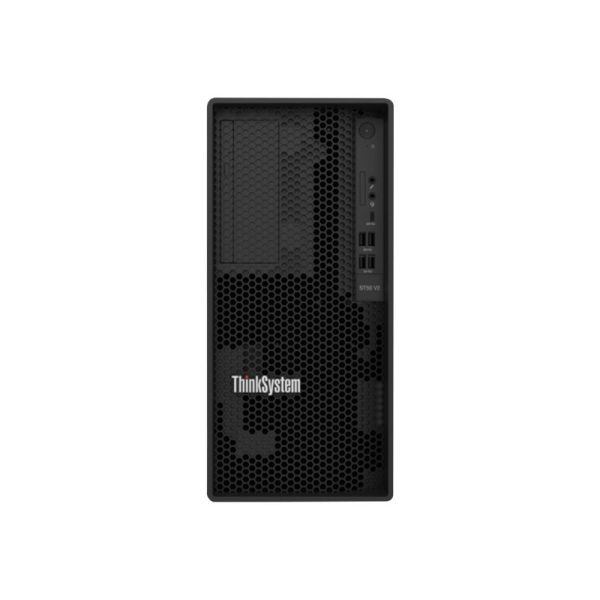

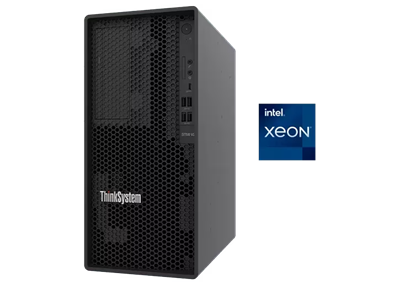

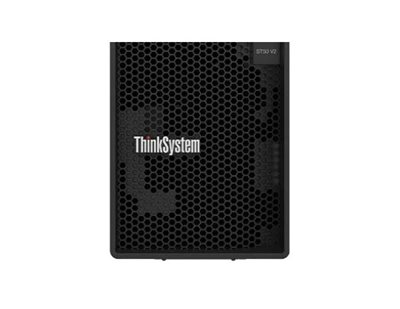

Lenovo ThinkSystem ST50 V2 7D8J

Be the first to review this product

Availability: Out of stock

SKU

7D8JA02FNA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Powerful, compact, and affordable first server A compact, affordable, performance optimized entry tower for growing businesses, remote/branch offices, and small/home offices.

Premier Foundation: Upgrade your base warranty and extend support of your systems. Premier Support 9x5 Next Business Day Response Onsite Tech. Dispatch for parts and labor Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Essential: Best choice for systems where maximum uptime is essential to the business. Premier Support 24x7 4-Hour Response Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Advanced: Robust coverage for systems supporting workloads that are mission critical. Premier Support 24x7 2 Hour Response** Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem ST50 V2 7D8J - Server - tower 5U - 1-way - 1 x Xeon E-2356G / up to 5 GHz - RAM 16 GB - no HDD - UHD Graphics P750 - Gigabit Ethernet - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$1,319.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	31.6 cm
Dimensions & Weight / Height	37.6 cm
Dimensions & Weight / Weight	9.4 kg
Dimensions & Weight / Width	17 cm
Display / Type	None.
Header / Brand	Lenovo
Header / Country Kits	North America
Mainboard / Chipset Type	Intel C256
Mainboard / Processor Socket	LGA1200 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	3.2 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	6-core
Processor / Processor Number	E-2356G
Processor / Type	Xeon
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Intel UHD Graphics P750
Cache Memory
Cache Per Processor	12 MB
Installed Size	12 MB
Dimensions & Weight
Depth	31.6 cm
Height	37.6 cm
Weight	9.4 kg
Width	17 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	42 cm
JTFpping Height	54 cm
JTFpping Width	28 cm
Environmental Parameters
Humidity Range Operating	8 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" 2 (total) / 2 (free) x internal 3.5" 1 (total) / 1 (free) x internal 2.5"
Interfaces	1 x USB-C 3.2 Gen 2 (1 in front) 2 x USB 3.2 Gen 2 (2 in front) 6 x USB 3.2 Gen 1 (2 front, 4 rear) 2 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x serial 1 x audio line-out
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)
General
Built-in Devices	1 x rear fan
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Internal Bays Qty	3
Localization	Region: North America
Product Form Factor	Tower - 5U
Server Scalability	1-way
Type	Server
Graphics Controller
Graphics Processor	Intel UHD Graphics P750
Video Interfaces	DisplayPort
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI, IEC 60950-1, GB 17625.1, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TP TC 004/2011, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Networking
Compliant Standards	DASH 1.1
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 15
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Efficiency	92%
Power Provided	300 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C256
Clock Speed	3.2 GHz
CPU	Intel Xeon E-2356G
CPU Qty	1
CPU Socket	LGA1200 Socket
Max CPU Qty	1
Max Turbo Speed	5 GHz
Number of Cores	6-core
RAM
Configuration Features	1 x 16 GB
Effective Memory Speed	3200 MT/s
Features	Unbuffered
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 64 GB (max)
Slots	4 (total) / 3 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Channel Qty	3
Controller Interface Type	SATA 6Gb/s
RAID Level	JBOD
Type	1 x SATA
