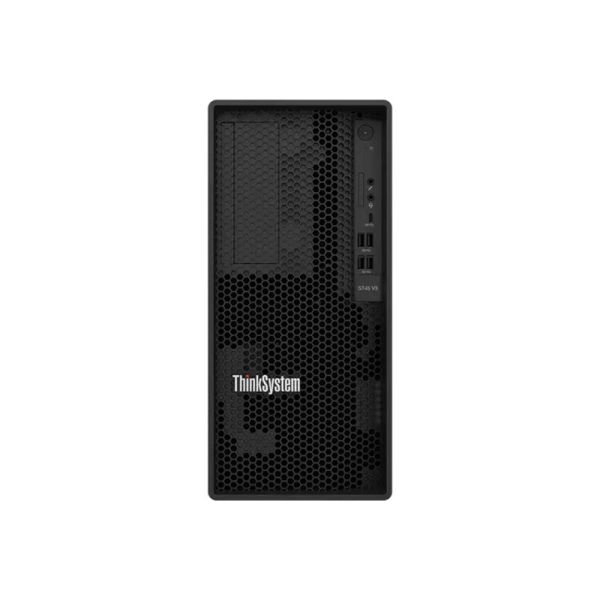

Lenovo ThinkSystem ST45 V3 7DH5

Be the first to review this product

Availability: Out of stock

SKU

7DH5A01VNA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkSystem ST45 V3 is designed for high efficiency and reliability in a compact tower form factor. Supporting AMD EPYC processors with a clock speed of 3.8 GHz, this server is equipped with 1.92 TB of hard drive capacity and can handle demanding applications. With two internal 3.5-inch storage bays, it offers flexibility for expansion while ensuring secure data management through an embedded Trusted Platform Module (TPM 2.0) security chip. In addition to its robust performance, the Lenovo ThinkSystem ST45 V3 meets several environmental standards, being ENERGY STAR certified and EPEAT Bronze compliant. This makes it suitable for organizations striving for sustainability. With a combination of ECC DDR5 memory technology and efficient power supply rated at 500 W with 80 PLUS Platinum certification, it delivers performance and energy savings in your IT infrastructure.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkSystem ST45 V3 7DH5 - Server - tower 1-way - 1 x EPYC 4244P / up to 5.1 GHz - RAM 16 GB - non-hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$4,349.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Chassis / Server Storage Bays	Non-hot-swap
Dimensions & Weight / Depth	31.6 cm
Dimensions & Weight / Height	37.6 cm
Dimensions & Weight / Weight	8.56 kg
Dimensions & Weight / Width	17 cm
Display / Type	None.
Header / Brand	Lenovo
Header / Country Kits	North America
Mainboard / Chipset Type	AMD PRO 665
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	3.8 GHz
Processor / Manufacturer	AMD
Processor / Number of Cores	6-core
Processor / Processor Number	4244P
Processor / Type	EPYC
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Cache Memory
Cache Per Processor	32 MB
Installed Size	L3 cache - 32 MB
Dimensions & Weight
Depth	31.6 cm
Height	37.6 cm
Weight	8.56 kg
Width	17 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	42 cm
JTFpping Height	54 cm
JTFpping Width	28 cm
Environmental Parameters
Humidity Range Operating	8 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x internal 3.5"
Interfaces	4 x USB 2.0 (4 rear) 1 x audio line-out (1 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x HDMI (1 rear) 2 x DisplayPort 1.4 (2 rear) 4 x USB 3.2 Gen 1 (4 front) 1 x USB-C 3.2 Gen 1 (1 front) 1 x microphone (1 front) 1 x headphones/microphone (1 front)
Slots	1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height
General
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Region: North America
Product Form Factor	Tower
Server Scalability	1-way
Type	Server
Graphics Controller
Video Interfaces	DisplayPort, HDMI
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Compliant Standards	ANSI/UL 62368-1, IEC 62368-1, CSA C22.2 No. 62368-1, IEC 60950-1, NOM-019, BIS 13252 (Part 1), GS, EN 62368-1, EK1-ITB2000, TUV-GS, INMETRO, UkrCEPRO, CMIM, TP EAC 037/2016, TP TC 004/2011, TP TC 020/2011, EN 55032 Class A, EN55024, EN55035, EN 61000-3-2, EN 61000-3-3, (EU) 2019/424, IEC/EN 63000, FCC-15 (Class A), ICES-003 issue 7 Class A, CISPR 32 Class A, CISPR 35, KN32, KN35, VCCI Class A, BSMI CNS 15936, CNS 15598-1, CNS 15663, AS/NZS CISPR 32 Class A, AS/NZS 62368.1, Energy-Related Products (ErP) Lot 9, CCC, CECP, CELP, GB 17625.1, GB 4943.1, GB/T9254, CQC3135, HJ 2507-2011
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Gigabit Ethernet, Fast Ethernet
Ethernet Controller	Realtek RTL8111FP
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Power Provided	300 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	AMD PRO 665
Clock Speed	3.8 GHz
CPU	AMD EPYC 4244P
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	5.1 GHz
Number of Cores	6-core
RAM
Configuration Features	1 x 16 GB
Effective Memory Speed	5200 MT/s
Features	Unbuffered
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 64 GB (max)
Rated Memory Speed	5600 MT/s
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM - ECC
Storage Controller
Type	1 x SATA
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	4.0
EPEAT Compliant	EPEAT Bronze
