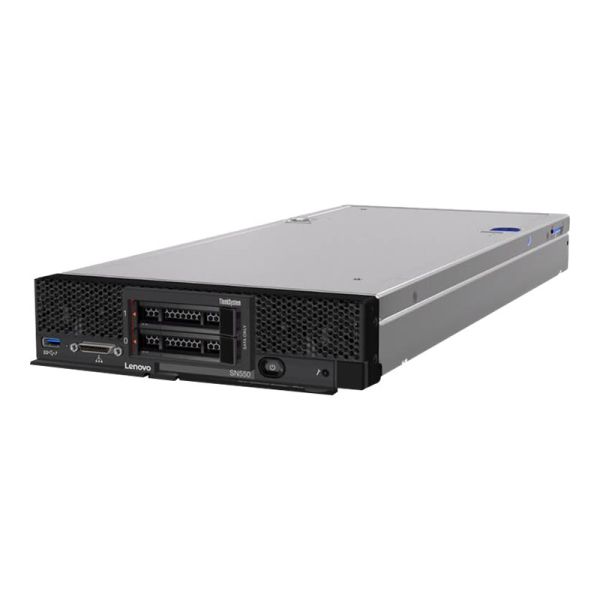

Lenovo ThinkSystem SN550 7X16

Be the first to review this product

Availability: Out of stock

SKU

7X16A021NA

UPC Code

889488446087

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates up to two Intel Xeon Processor Scalable Family of processors. The processors feature up to 28 cores each and use Lenovo TruDDR4 memory, which runs at speeds up to 2666 MHz.

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem SN550 7X16 - Server - blade 2-way - 1 x Xeon Platinum 8160 - RAM 32 GB - no HDD - Matrox G200 - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$15,799.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Blade
Dimensions & Weight / Depth	49.27 cm
Dimensions & Weight / Height	5.55 cm
Dimensions & Weight / Weight	7.1 kg
Dimensions & Weight / Width	21.55 cm
Display / Type	None.
Header / Brand	Lenovo
Header / Country Kits	Canada United States
Mainboard / Chipset Type	Intel C624
Miscellaneous / Product Color	Black
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	24-core
Processor / Processor Number	8160
Processor / Type	Xeon Platinum
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2666 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Matrox G200
Cache Memory
Cache Per Processor	33 MB
Installed Size	33 MB
Dimensions & Weight
Depth	49.27 cm
Height	5.55 cm
Weight	7.1 kg
Width	21.55 cm
Environmental Parameters
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Interfaces	1 x USB 3.0 (1 in front) 1 x management (1 in front)
Slots	24 (total) / 23 (free) x DIMM 288-pin 2 (total) / 1 (free) x CPU 2 (total) / 2 (free) x expansion slot
General
Embedded Security	Trusted Platform Module (TPM 1.2 and TPM 2.0)
Localization	Region: Canada, United States
Product Form Factor	Blade
Server Scalability	2-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200
Video Memory	16 MB
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI, CISPR 22 Class A, EN55024, EN55022 Class A, CB, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN24, KN22 Class A, CNS 14336, EK1-ITB2000, CNS 13438 Class A, ASHRAE Class A3, EN61000-3-2, EN61000-3-3
Monitor
Monitor Type	None.
Networking
Remote Management Controller	XClarity Controller (XCC)
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Processor / Chipset
Chipset Type	Intel C624
Clock Speed	2.1 GHz
CPU	Intel Xeon Platinum 8160
CPU Qty	1
Max CPU Qty	2
Number of Cores	24-core
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	2666 MT/s
Features	Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, TruDDR4
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 768 GB (max)
RAM Supported	768 GB registered - ECC 1.5 TB Load-Reduced - ECC
Slots	24 (total) / 23 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Channel Qty	2
Controller Interface Type	SATA 6Gb/s
Type	1 x SATA
