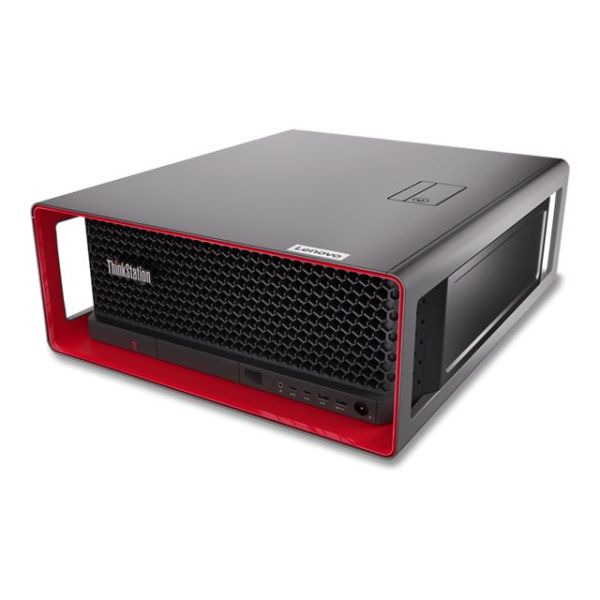

Lenovo ThinkStation P7 30F3

Details

Rack-optimized for desktop environment& data center flexibilityAdvanced thermal design in an Aston Martin-inspired chassis, ISV-certifiedBreakthrough new computing architecture in a single-socket platformPowered by Intel Xeon W-Series processor, optional 3x discrete graphicsFront drive access, tool-less serviceability,& easy to upgrade.

Lenovo ThinkStation P7 Workstation: Staggering single-socket tower of power | Rack-optimized for desktop environment & data center flexibility | Advanced thermal design in an Aston Martin-inspired chassis, ISV-certified | Breakthrough new computing architecture in a single-socket platform | Powered by high-performance processor, professional-grade graphics | Front drive access, tool-less serviceability, & easy to upgrade

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P7 30F3 - Tower 1 x Xeon W W7-3465X / up to 4.8 GHz - vPro Enterprise - RAM 64 GB - SSD 2 TB - TCG Opal Encryption, NVMe, Performance - RTX 4500 Ada - Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) - Win 11 Pro for Workstations - monitor: none - keyboard: English - Lenovo TopSeller - with 3 Years Lenovo Premier Support
Manufacturer	Lenovo
MSRP	$16,179.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	50.8 cm
Dimensions & Weight / Height	43.44 cm
Dimensions & Weight / Weight	24.5 kg
Dimensions & Weight / Width	17.5 cm
Display / Type	None.
Hard Drive / Capacity	2 TB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	FCLGA4677 Socket
Miscellaneous / Product Color	Black Red
Networking / Data Link Protocol	10 Gigabit Ethernet Bluetooth 5.1 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.1
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro for Workstations
Packaged Quantity	1
Processor / Clock Speed	2.5 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	28-core
Processor / Processor Number	W7-3465X
Processor / Type	Xeon W
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	4800 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	2 TB
System / Platform Technology	Intel vPro Enterprise
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX 4500 Ada
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	75 MB
Installed Size	75 MB
Card Reader
Type	15 in 1 card reader
Dimensions & Weight
Depth	50.8 cm
Height	43.44 cm
Weight	24.5 kg
Width	17.5 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x internal 3.5"
Interfaces	1 x USB-C 3.2 Gen 2x2 (1 rear) 2 x USB 2.0 (2 rear) 3 x USB 3.2 Gen 2 (3 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x LAN (10Gigabit Ethernet) (1 rear) 1 x audio line-in (1 rear) 1 x audio line-out (1 rear) 1 x headphones/microphone (1 front) 2 x USB-C 3.2 Gen 2 (2 front) (data only) 1 x USB 3.2 Gen 2 (1 front) (Always On) 1 x USB 3.2 Gen 2 (1 front) 4 x DisplayPort 1.4a
Slots	3 (total) / 2 (free) x PCIe 5.0 x16 1 (total) / 1 (free) x PCIe 4.0 x16 1 (total) / 1 (free) x PCIe 4.0 x8 1 (total) / 1 (free) x PCIe 5.0 x4 1 (total) / 1 (free) x PCIe 4.0 x4 3 (total) / 2 (free) x M.2 Card
General
Built-in Devices	Speaker
Bundled Services	3 Years Lenovo Premier Support
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	Tower
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA RTX 4500 Ada
Video Interfaces	DisplayPort
Video Memory	24 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 2 TB
Features	TCG Opal Encryption, NVM Express (NVMe), Performance
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Base warranty - 3 years - on-site Extended warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, TCG Certified
Included Accessories	Lock kit (common key)
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6E)
Ethernet Controller	Marvell AQtion AQC-113C, Intel I219-LM
Ethernet Ports	1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet
Features	Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 16
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 210
Operating System / Software
OS Provided	Windows 11 Pro for Workstations English
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Efficiency	92%
Power Provided	1400 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	2.5 GHz
CPU	Intel Xeon W W7-3465X
CPU Qty	1
CPU Socket	FCLGA4677 Socket
Max CPU Qty	1
Max Turbo Speed	4.8 GHz
Number of Cores	28-core
RAM
Configuration Features	4 x 16 GB
Effective Memory Speed	4800 MT/s
Features	Registered
Form Factor	DIMM 288-pin
Installed Size	64 GB (installed) / 1 TB (max)
Slots	8 (total) / 4 (empty)
Technology	DDR5 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5
Type	1 x RAID
Storage Controller (2nd)
Controller Interface Type	PCI Express
Type	1 x NVMe
Sustainability Information
Carbon Footprint	3735 kg carbon emissions
ENERGY STAR Certified	Yes
ENERGY STAR Version	8.0
EPEAT Compliant	EPEAT Gold
PAIA Version	1.3.2
TCO Certified	TCO Certified Desktops 9
Total CF/unit Standard Deviation (kg CO2e)	282
