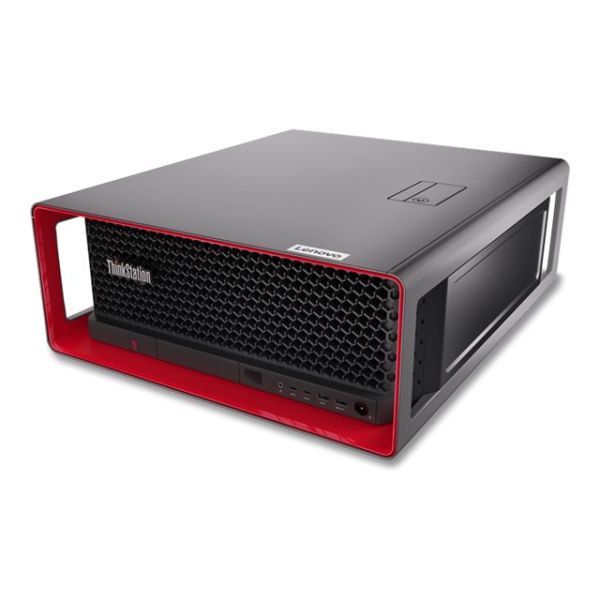

Lenovo ThinkStation P7 30F3

Be the first to review this product

Availability: Out of stock

SKU

30F30083US

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Rack-optimized for desktop environment& data center flexibilityAdvanced thermal design in an Aston Martin-inspired chassis, ISV-certifiedBreakthrough new computing architecture in a single-socket platformPowered by Intel Xeon W-Series processor, optional 3x discrete graphicsFront drive access, tool-less serviceability,& easy to upgrade.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P7 30F3 - Tower 1 x Xeon W5-3423 / up to 4.2 GHz - vPro Enterprise - RAM 32 GB - SSD 512 GB - TCG Opal Encryption, NVMe, Performance - RTX A1000 - Gigabit Ethernet, 10 Gigabit Ethernet - Win 11 Pro for Workstations - monitor: none - keyboard: English - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$6,549.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	50.8 cm
Dimensions & Weight / Height	43.44 cm
Dimensions & Weight / Weight	24.5 kg
Dimensions & Weight / Width	17.5 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	FCLGA4677 Socket
Networking / Data Link Protocol	10 Gigabit Ethernet Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro for Workstations
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	12-core
Processor / Processor Number	W5-3423
Processor / Type	Xeon
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Enterprise
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A1000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	30 MB
Installed Size	30 MB
Card Reader
Supported Flash Memory Cards	SD Memory Card
Type	Card reader
Dimensions & Weight
Depth	50.8 cm
Height	43.44 cm
Weight	24.5 kg
Width	17.5 cm
Expansion / Connectivity
Interfaces	1 x headphones/microphone (1 front) 7 x USB 3.2 Gen 2 (4 front, 3 rear) 1 x USB-C 3.2 Gen 2x2 (1 rear) (data only) 2 x USB 2.0 (2 rear) 1 x LAN (10Gigabit Ethernet) (1 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x audio line-in (1 rear) 1 x audio line-out (1 rear)
General
Built-in Devices	Front diagnostic panel with QR code
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	Tower
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA RTX A1000
Video Memory	8 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	TCG Opal Encryption, NVM Express (NVMe), Performance
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Miscellaneous
Compliant Standards	FIPS 140-2, TCG Certified
Included Accessories	Lock kit (common key)
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet Controller	Marvell AQtion AQC-113C, Intel I219-LM
Ethernet Ports	1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet
Features	Intel Active Management Technology (AMT) 16
Operating System / Software
OS Provided	Windows 11 Pro for Workstations English
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Power Provided	1400 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	2.1 GHz
CPU	Intel Xeon W5-3423
CPU Qty	1
CPU Socket	FCLGA4677 Socket
Max CPU Qty	1
Max Turbo Speed	4.2 GHz
Number of Cores	12-core
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	4800 MT/s
Features	Registered, 8-channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 1 TB (max)
Slots	8 (total) / 6 (empty)
Technology	DDR5 SDRAM - ECC
Storage Controller
Type	NVMe
Storage Controller (2nd)
Type	SATA
Sustainability Information
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
