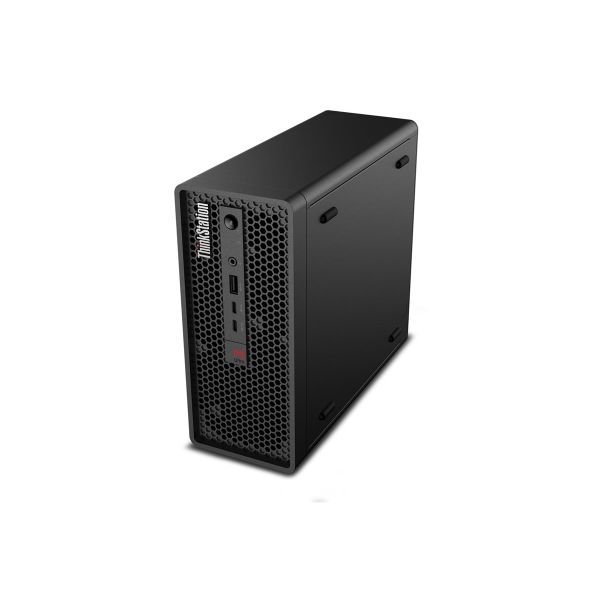

Lenovo ThinkStation P3 Ultra Gen 2 30J5

Be the first to review this product

Availability: Out of stock

SKU

30J5002XUS

UPC Code

198158138680

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Enhance performance with the Lenovo ThinkStation P3 Ultra Gen 2, a powerful workstation designed for demanding tasks. Equipped with a 20-core Intel Core Ultra 7 processor, this workstation ensures efficient operations, accelerating workflows and multitasking. With 1 TB of SSD storage and advanced RAID support, users can relish quick data access and enhanced security for important files. The workstation is built with dual-channel DDR5 SDRAM for smooth operations and integrates a Realtek ALC623-CG audio solution for high definition audio output, providing a complete experience for both productivity and multimedia content. The Lenovo ThinkStation P3 Ultra Gen 2 is designed with an emphasis on adaptability and connectivity. Featuring multiple expansion slots, users can enhance performance with additional SSDs or WLAN options. The small form factor allows for easy placement without sacrificing power or performance. Additionally, this workstation stands compliant with various industry standards, including RoHS and TCO certification, ensuring a commitment to environmental sustainability.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P3 Ultra Gen 2 30J5 - AI Workstation - SFF 1 x Core Ultra 7 265 / up to 5.3 GHz - vPro Enterprise - RAM 32 GB - SSD 512 GB - TCG Opal Encryption, NVMe, Performance - RTX A1000 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: English - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$3,389.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	22.3 cm
Dimensions & Weight / Height	20.2 cm
Dimensions & Weight / Weight	3.6 kg
Dimensions & Weight / Width	8.7 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 5.0 x4
Hard Drive / Interface Type	PCI Express 5.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W880
Mainboard / Processor Socket	FCLGA1851 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.4 GHz
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	265
Processor / Type	Core Ultra 7
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	SO-DIMM 262-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Enterprise
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A1000 / Intel Graphics
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	30 MB
Installed Size	30 MB
Dimensions & Weight
Depth	22.3 cm
Height	20.2 cm
Weight	3.6 kg
Width	8.7 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Interfaces	5 x USB 3.2 Gen 2 (1 front, 4 rear) 3 x DisplayPort 1.2 (3 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x headphones/microphone (1 rear) 2 x USB-C 3.2 Gen 2x2 (2 front) (data only) 4 x Mini DisplayPort 1.4a
Slots	1 (total) / 0 (free) x PCIe 4.0 x8 (x4 mode) 1 (total) / 0 (free) x M.2 Card (for WLAN) 3 (total) / 2 (free) x M.2 Card (for SSD)
General
AI Level	AI Workstation
Built-in Devices	Speaker
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	SFF
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA RTX A1000 / Intel Graphics - up to 8 TOPS
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Interfaces	DisplayPort
Video Memory	8 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	TCG Opal Encryption, NVM Express (NVMe), Performance
Interface Type	PCI Express 5.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, TCG Certified
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 16
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	33 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	90%
Power Provided	330 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W880
Clock Speed	2.4 GHz (P-core) / 1.8 GHz (E-core)
CPU	Intel Core Ultra 7 (Series 2) 265
CPU Qty	1
CPU Socket	FCLGA1851 Socket
Max CPU Qty	1
Max Turbo Speed	5.3 GHz (P-core) / 4.6 GHz (E-core)
Number of Cores	20-core
Processor Main Features	Intel Smart Cache
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	6400 MT/s
Features	Dual channel memory architecture
Form Factor	SO-DIMM 262-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	6400 MT/s
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Controller Interface Type	PCI Express (NVMe)
RAID Level	RAID 0, RAID 1, RAID 5
Type	1 x RAID
Sustainability Information
Carbon Footprint	630 kg carbon emissions
PAIA Version	1.4.7
TCO Certified	TCO Certified, generation 10, for desktops
Total CF/unit Standard Deviation (kg CO2e)	90
