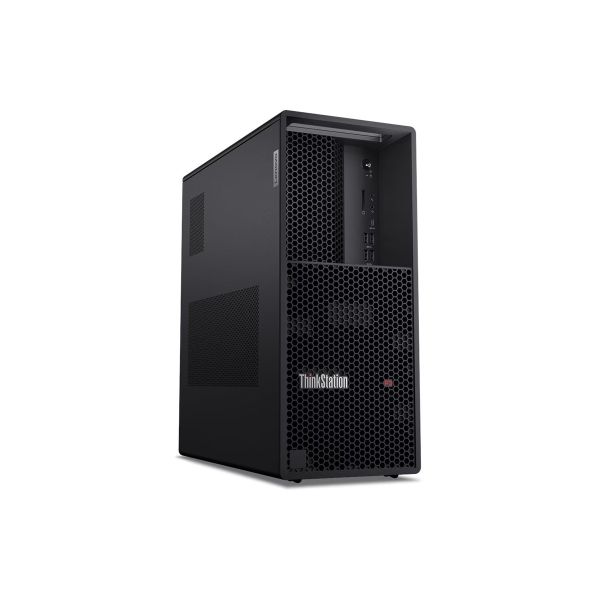

Lenovo ThinkStation P3 Gen 2 30HT

Be the first to review this product

Availability: Out of stock

SKU

30HT0071US

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkStation P3 Gen 2 is designed for professionals who require a powerful workstation. Equipped with a 24-core Intel Core Ultra 9 processor, this tower workstation delivers robust performance for demanding applications. Featuring 64 GB of DDR5 SDRAM with dual-channel memory architecture, the system ensures smooth multitasking and efficient data processing. The installed 1 TB NVMe SSD provides quick access to data, bolstered by TCG Opal encryption for enhanced security. With a diverse range of connectivity options, including USB-A, USB-C, HDMI, and DisplayPort, users can easily connect to peripherals and displays, making this workstation a versatile choice for any professional environment. The Lenovo ThinkStation P3 Gen 2 meets stringent compliance standards such as FIPS 140-2 and MIL-STD 810H, ensuring reliability and security for sensitive tasks. The integrated Realtek ALC623-CG audio codec delivers high definition audio output for an immersive experience. Additionally, the system features a Kensington security slot and padlock loop to safeguard against theft and unauthorized access. With a powerful 750-watt power supply certified by 80 PLUS Platinum, this workstation is built to handle demanding workloads efficiently.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P3 Gen 2 30HT - AI Workstation - tower 1 x Core Ultra 9 285 / up to 5.6 GHz - vPro Enterprise - RAM 96 GB - SSD 1 TB - TCG Opal Encryption, NVMe, Performance - DVD-Writer - RTX PRO 4000 Blackwel - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: English - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$5,669.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	37 cm
Dimensions & Weight / Height	41.5 cm
Dimensions & Weight / Weight	14.38 kg
Dimensions & Weight / Width	18 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 5.0 x4
Hard Drive / Interface Type	PCI Express 5.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W880
Mainboard / Processor Socket	FCLGA1851 Socket
Networking / Data Link Protocol	Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	24-core
Processor / Processor Number	285
Processor / Type	Core Ultra 9
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Platform Technology	Intel vPro Enterprise
System / Type	Workstation
Video Memory / Technology	GDDR7 SDRAM
Video Output / Graphics Processor	NVIDIA RTX PRO 4000 Blackwell / Intel Graphics
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	36 MB
Installed Size	36 MB
Card Reader
Supported Flash Memory Cards	SD Memory Card
Type	Card reader
Dimensions & Weight
Depth	37 cm
Height	41.5 cm
Weight	14.38 kg
Width	18 cm
Expansion / Connectivity
Interfaces	1 x USB-C 3.2 Gen 2x2 (1 front) (data only) 3 x USB 3.2 Gen 1 (2 front, 1 rear) 2 x USB 3.2 Gen 2 (2 front) 1 x headphones/microphone (1 front) 1 x microphone (1 front) 2 x USB 2.0 (2 rear) 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) 1 x HDMI (1 rear) (TMDS compatible) 2 x DisplayPort 1.4 (2 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x audio line-out (1 rear) 1 x DisplayPort (1 rear) (Flex I/O module)
General
AI Level	AI Workstation
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	Tower
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA RTX PRO 4000 Blackwell / Intel Graphics - up to 8 TOPS
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Memory	24 GB GDDR7 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	TCG Opal Encryption, NVM Express (NVMe), Performance
Interface Type	PCI Express 5.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	FIPS 140-2, TCG Certified, MIL-STD 810H
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet Controller	Intel I219-LM
Features	Dual stream (2x2), Intel Active Management Technology (AMT) 16
Wireless LAN Supported	Yes
Wireless NIC	Intel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	36 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro English
Software	Lenovo Diagnostics for Windows
Optical Storage
Type	DVD±RW DVD-Writer - SATA
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Power Provided	750 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W880
CPU	Intel Core Ultra 9 (Series 2) 285
CPU Qty	1
CPU Socket	FCLGA1851 Socket
Max CPU Qty	1
Max Turbo Speed	5.6 GHz
Number of Cores	24-core
RAM
Configuration Features	2 x 48 GB
Effective Memory Speed	5600 MT/s
Features	Unbuffered, dual channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	96 GB (installed) / 256 GB (max)
Slots	4 (total) / 2 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Type	NVMe
Storage Controller (2nd)
Type	SATA
