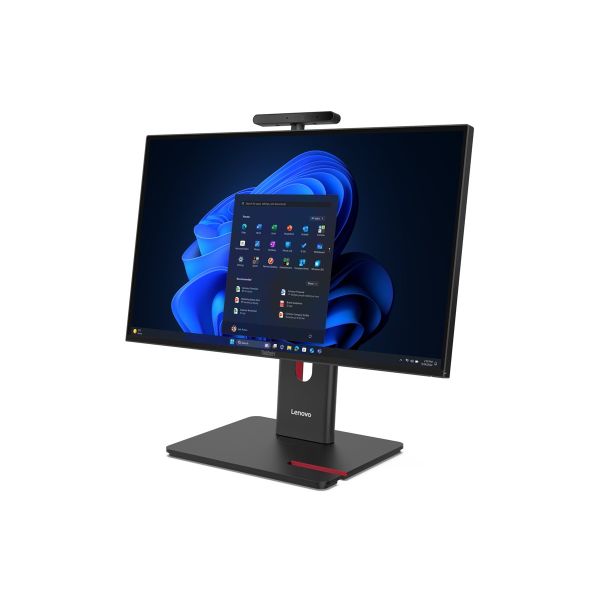

Lenovo ThinkCentre M90a Gen 6 13AT

Be the first to review this product

Availability: Out of stock

SKU

13AT0037US

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkCentre M90a Gen 6 is designed to elevate productivity with its 23.8-inch Full HD display. The resolution of 1920 x 1080 paired with technologies such as Eyesafe and Low Blue Light ensures a comfortable viewing experience. This all-in-one solution is equipped with stereo speakers and a hybrid IR camera featuring human presence detection, making it ideal for seamless video conferencing and collaboration. With a Core Ultra 9 processor and 32 GB of DDR5 RAM, this system handles multitasking with ease, while the 1 TB SSD provides ample storage and performance for all applications. Connectivity is a strong suit of the M90a Gen 6, with multiple ports including USB 3.2, HDMI, and Thunderbolt 4 to accommodate various peripherals. The wireless capabilities, including Wi-Fi 6E and Bluetooth 5.3, ensure fast and stable connections. EPEAT Gold and ENERGY STAR certifications underline its commitment to environmental responsibility, making it a powerful and efficient machine. The Lenovo ThinkCentre M90a Gen 6 is a robust choice for professionals seeking a reliable and stylish desktop experience.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkCentre M90a Gen 6 13AT - AI PC - all-in-one with UltraFlex V Stand - Core Ultra 9 285 / up to 5.6 GHz - vPro Enterprise - RAM 64 GB - SSD 1 TB - TCG Opal Encryption 2, NVMe - GeForce RTX 4050 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: LED 23.8" 1920 x 1080 (Full HD) @ 120 Hz - keyboard: US English - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$4,559.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	All-in-one
Dimensions & Weight / Depth	26.491 cm
Dimensions & Weight / Height	45.594 cm
Dimensions & Weight / Weight	8.04 kg
Dimensions & Weight / Width	53.96 cm
Display / Diagonal Size	23.8 in
Display / Diagonal Size (metric)	60.5 cm
Display / Native Resolution	1920 x 1080
Display / Type	LED
Display / Widescreen Display	Yes
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q870
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	24-core
Processor / Processor Number	285
Processor / Type	Core Ultra 9
RAM / Form Factor	SO-DIMM 262-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Platform Technology	Intel vPro Enterprise
System / Type	Personal computer
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	Intel Graphics NVIDIA GeForce RTX 4050 / Intel Graphics
Audio Input
Type	Dual array microphone
Audio Output
Compliant Standards	High Definition Audio
Speakers Included	2 x right / left channel
Cache Memory
Cache Per Processor	36 MB
Installed Size	36 MB
Camera
Camera	Yes
Features	Hybrid IR camera, ThinkShutter camera cover
Resolution (MP)	5 Megapixel
Dimensions & Weight
Depth	26.491 cm
Dimensions & Weight Details	53.96 cm - 26.491 cm - 45.594 cm - with stand (highest position in vertical mode) 53.96 cm - 33.345 cm - 22.41 cm - with stand (lowest position in flat mode)
Height	45.594 cm
Weight	8.04 kg
Width	53.96 cm
Expansion / Connectivity
Interfaces	3 x USB 3.2 Gen 2 (1 side, 2 rear) 1 x USB 3.2 Gen 1 (1 rear) 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) 1 x HDMI input/output combo (1 rear) (TMDS compatible) 1 x DisplayPort 1.4a (1 rear) 1 x LAN (1 rear) 1 x Thunderbolt 4/USB4/DisplayPort 2.1 (1 side) (Always On, 65W Power Delivery 3.0) 1 x USB-C 3.2 Gen 2 (1 side) (data transfer, 5V 3A charging) 1 x headphones/microphone (1 side)
Slots	3 (total) / 2 (free) x M.2 Card - 2280 (for SSD)
General
AI Level	AI PC
Built-in Devices	Stereo speakers
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	All-in-one - with UltraFlex V Stand
Type	Personal computer
Graphics Controller
Graphics Processor	NVIDIA GeForce RTX 4050 / Intel Graphics - up to 8 TOPS
Video Memory	6 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Calliope Keyboard
Localization & Layout	US English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	IEC 60601-1-2, RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TCG Certified, TUV Rheinland Low Blue Light (Hardware Solution), UL Anti-dust, Eyesafe Certified 2.0, MIL-STD 810H, IP55 front, SGS Performance Tested certification: Super Quiet@Hi-Performance Grade 1
Included Accessories	VESA mounting kit
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
VESA Mounting Interface	VESA
Monitor
Color Gamut	99% sRGB
Diagonal Size	23.8"
Image Aspect Ratio	16:9
Image Brightness	250 cd/m²
Monitor Features	Flicker Free technology, Low Blue Light technology, Eyesafe technology
Monitor Type	LED - IPS
Native Resolution	1920 x 1080 (Full HD)
V-Sync Rate at Max Res.	120 Hz
Widescreen Display	Yes
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Features	Dual stream (2x2)
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	36 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	92%
Power Provided	230 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q870
CPU	Intel Core Ultra 9 (Series 2) 285
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	5.6 GHz
Number of Cores	24-core
RAM
Configuration Features	2 x 32 GB
Effective Memory Speed	5600 MT/s
Features	Dual channel memory architecture
Form Factor	SO-DIMM 262-pin
Installed Size	64 GB (installed) / 64 GB (max)
Slots	2 (total) / 0 (empty)
Technology	DDR5 SDRAM
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	9.0
EPEAT Compliant	EPEAT Gold
