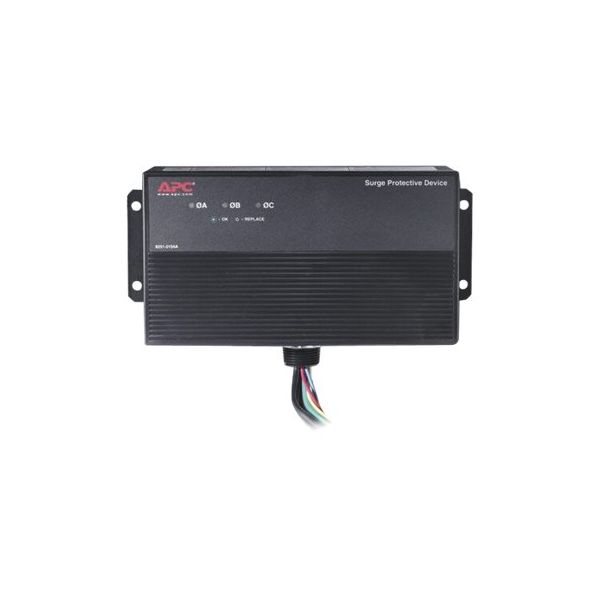

SURGEARREST PANELMOUNT 480/277V80KA WITH SURGE COUNTER

Availability: Out of stock

SKU

PMG2X-A

UPC Code

731304264972

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

SurgeArrest Panelmount 480/277V 80KA with Surge Counter, Non-modular.

General Information
Category	Power conditioning equipment
Description	SURGEARREST PANELMOUNT 480/277V80KA WITH SURGE COUNTER
Manufacturer	APC by Schneider Electric
MSRP	$728.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	7.6 cm
Dimensions & Weight / Height	12.1 cm
Dimensions & Weight / Weight	3 kg
Dimensions & Weight / Width	21.9 cm
General / Subcategory	Surge protection and power conditioning
Header / Brand	APC
Miscellaneous / Product Color	Gray
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Voltage Required	AC 480 V
Product Type	Surge protector
Service & Support / Type	10-year warranty
Dimensions & Weight
Depth	7.6 cm
Height	12.1 cm
Weight	3 kg
Width	21.9 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	13.7 cm
JTFpping Height	18.9 cm
JTFpping Weight	3.6 kg
JTFpping Width	27.3 cm
Environmental Parameters
Max Operating Temperature	60 °C
Min Operating Temperature	-40 °C
General
Color	Gray
Device Type	Surge protector - external
Manufacturer Warranty
Service & Support	Limited warranty - 10 years
Miscellaneous
Compliant Standards	cUL, UL 1283, UL 1449, NEMA Type 4X
Features	Audible alarm, thermal monitoring, noise filtering
Power Device
Circuit Protection	Circuit breaker
EMI/RFI Noise Filtration	30 dB
Frequency Required	50/60 Hz
Input Connectors	1 x hardwire 5-wire (3PH + N + G)
Input Voltage	AC 480 V
Max Spike Current	80000 A
Surge Response Time	1 ns
Surge Suppression	Yes
