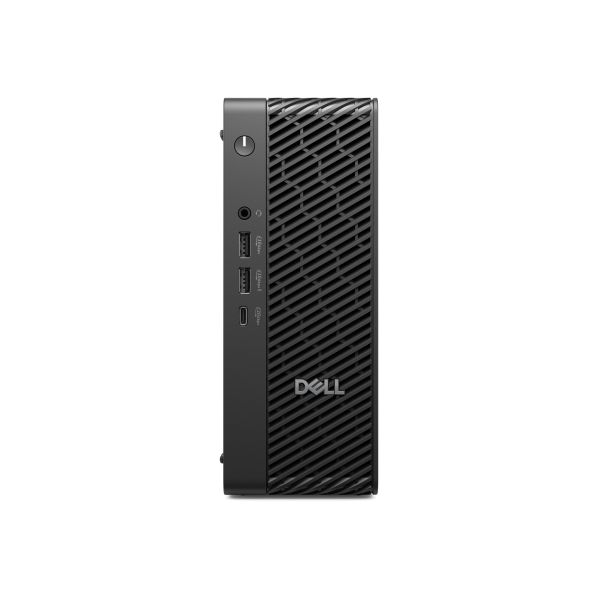

Dell Pro Max Micro FCM2250
The Dell Pro Max Micro FCM2250 delivers performance and versatility in an ultra small form factor. With a powerful Intel Core Ultra 7 processor, this personal computer is engineered to handle demanding tasks, featuring 20 cores and a maximum turbo speed of 5.3 GHz. The system is equipped with a responsive 30 MB cache and integrated audio through Realtek ALC3204, ensuring fluid processing and high definition sound. Supporting a range of connectivity options, the system is built with multiple USB 3.2 ports, including USB-C, alongside HDMI outputs for adaptable display connections. Its high-speed NVM Express SSD interface assures rapid data access and storage, further enhanced by security features like Trusted Platform Module (TPM). All of this is housed in a compact chassis designed for efficient performance in various environments, meeting the demands of both personal and professional use.
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Dell Pro Max Micro FCM2250 - AI PC - micro Core Ultra 7 265 / up to 5.3 GHz - vPro - RAM 16 GB - SSD 512 GB - SED, NVMe, TLC - RTX A1000 - Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Manufacturer | Dell |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 17.8 cm |
| Dimensions & Weight / Height | 20.6 cm |
| Dimensions & Weight / Weight | 1.89 kg |
| Dimensions & Weight / Width | 7.93 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | Dell |
| Mainboard / Chipset Type | Intel W880 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | 265 |
| Processor / Type | Core Ultra 7 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Memory Speed | 2800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 512 GB |
| System / Platform Technology | Intel vPro Platform |
| System / Type | Personal computer |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA RTX A1000 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | 30 MB |
| Dimensions & Weight | |
| Depth | 17.8 cm |
| Height | 20.6 cm |
| Weight | 1.89 kg |
| Width | 7.93 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI PC |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Platform Technology | Intel vPro Platform |
| Product Form Factor | Micro |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX A1000 - up to 8 TOPS |
| Video Interfaces | DisplayPort |
| Video Memory | 8 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse (on selected markets only), keyboard (on selected markets only) |
| Keyboard | |
| Keyboard Name | Dell Pro KM555 Compact Silent Keyboard and Mouse |
| Miscellaneous | |
| Pricing Type | Build To Stock (BTS) |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Ethernet Controller | Intel I219-LM |
| Features | MU-MIMO Support, dual stream (2x2) |
| Interface (Bus) Type | M.2 2230 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE200 |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 33 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Software | Intel Rapid Storage Technology, Activate your Microsoft 365 for a 30 day trial, CrowdStrike Endpoint Protection Pro Essential (1 year) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 280 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W880 |
| Clock Speed | 2.4 GHz (P-core) / 1.8 GHz (E-core) |
| CPU | Intel Core Ultra 7 (Series 2) 265 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.3 GHz (P-core) / 4.6 GHz (E-core) |
| Number of Cores | 20-core |
| Processor Main Features | 20 Threads |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 2800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Rated Memory Speed | 2800 MHz |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Sustainability Information | |
| Carbon Footprint | 183 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 1.28 |
| Logistics (kg CO2e) | 3.66 |
| Manufacturing (kg CO2e) | 63.32 |
| PAIA Version | GaBi version 1, 2024 |
| Total Carbon w/o Use Phase (kg CO2e) | 68.259 |
| Use (kg CO2e) | 114.74 |
