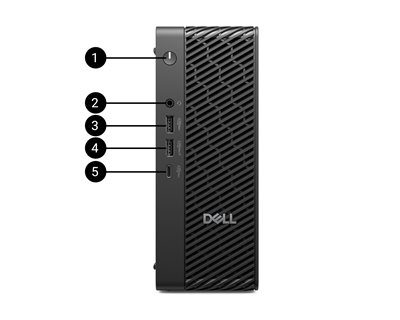

Dell Pro Max Micro FCM2250

Be the first to review this product

Availability: In stock

SKU

537DY

UPC Code

884116487982

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Dell Pro Max Micro FCM2250 delivers performance and versatility in an ultra small form factor. With a powerful Intel Core Ultra 7 processor, this personal computer is engineered to handle demanding tasks, featuring 20 cores and a maximum turbo speed of 5.3 GHz. The system is equipped with a responsive 30 MB cache and integrated audio through Realtek ALC3204, ensuring fluid processing and high definition sound. Supporting a range of connectivity options, the system is built with multiple USB 3.2 ports, including USB-C, alongside HDMI outputs for adaptable display connections. Its high-speed NVM Express SSD interface assures rapid data access and storage, further enhanced by security features like Trusted Platform Module (TPM). All of this is housed in a compact chassis designed for efficient performance in various environments, meeting the demands of both personal and professional use.

Specifications

General Information
Category	Desktop computers
Description	Dell Pro Max Micro FCM2250 - AI PC - micro Core Ultra 7 265 / up to 5.3 GHz - vPro - RAM 32 GB - SSD 512 GB - SED, NVMe, TLC - RTX A1000 - Gigabit Ethernet - Win 11 Pro - monitor: none - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
Manufacturer	Dell
MSRP	$4,404.85
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	17.8 cm
Dimensions & Weight / Height	20.6 cm
Dimensions & Weight / Weight	1.89 kg
Dimensions & Weight / Width	7.93 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	Dell
Mainboard / Chipset Type	Intel W880
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.4 GHz
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	265
Processor / Type	Core Ultra 7
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	SO-DIMM 262-pin
RAM / Memory Speed	2800 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Platform
System / Type	Personal computer
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A1000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	30 MB
Installed Size	30 MB
Dimensions & Weight
Depth	17.8 cm
Height	20.6 cm
Weight	1.89 kg
Width	7.93 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x LAN (Gigabit Ethernet) 1 x USB-C 3.2 Gen 2x2 (1 front) 4 x USB 3.2 Gen 2 (2 front, 2 rear) (one of them with PowerShare) 1 x USB-C 3.2 Gen 2 (1 rear) 2 x USB 3.2 Gen 1 (2 rear) (one of them supports SmartPower On) 1 x headphones/microphone 3 x DisplayPort 1.4a 4 x Mini DisplayPort 1.4a
Slots	2 (total) / 1 (free) x M.2 Card - 2280 (for SSD) 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) 2 PCIe 4.0 x8 - half-height
General
AI Level	AI PC
Bundled Services	3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Platform Technology	Intel vPro Platform
Product Form Factor	Micro
Type	Personal computer
Graphics Controller
Graphics Processor	NVIDIA RTX A1000 - up to 8 TOPS
Video Interfaces	DisplayPort
Video Memory	8 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Input Device
Type	Mouse (on selected markets only), keyboard (on selected markets only)
Keyboard
Keyboard Name	Dell Pro KM555 Compact Silent Keyboard and Mouse
Miscellaneous
Pricing Type	Build To Stock (BTS)
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	33 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro
Software	Intel Rapid Storage Technology, Activate your Microsoft 365 for a 30 day trial, CrowdStrike Endpoint Protection Pro Essential (1 year)
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Power Provided	280 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W880
Clock Speed	2.4 GHz (P-core) / 1.8 GHz (E-core)
CPU	Intel Core Ultra 7 (Series 2) 265
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	5.3 GHz (P-core) / 4.6 GHz (E-core)
Number of Cores	20-core
Processor Main Features	20 Threads
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	2800 MHz
Form Factor	SO-DIMM 262-pin
Installed Size	32 GB (installed) / 64 GB (max)
Rated Memory Speed	2800 MHz
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM - non-ECC
Sustainability Information
Carbon Footprint	183 kg carbon emissions
ENERGY STAR Certified	Yes
EOL (kg CO2e)	1.28
Logistics (kg CO2e)	3.66
Manufacturing (kg CO2e)	63.32
PAIA Version	GaBi version 1, 2024
Total Carbon w/o Use Phase (kg CO2e)	68.259
Use (kg CO2e)	114.74
