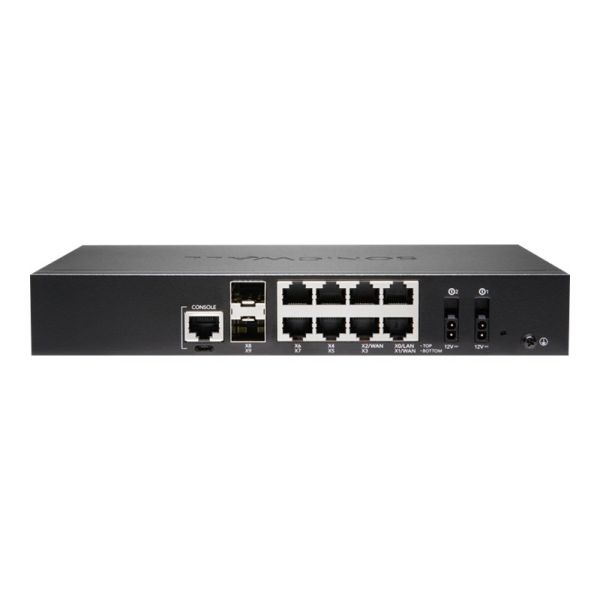

SonicWall TZ570P - Advanced Edition

Availability: In stock
SKU
02-SSC-5682
UPC Code
758479256823
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats. The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity. With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with Real-Time Deep Memory Inspection (RTDMI).
General Information
CategoryFirewall appliances
DescriptionSonicWall TZ570P - Advanced Edition - security appliance - with 3 years TotalSecure - 1GbE, 5GbE - desktop
ManufacturerSonicWall
MSRP$5,610.00
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth15 cm
Dimensions & Weight / Height3.5 cm
Dimensions & Weight / Weight990 g
Dimensions & Weight / Width22.5 cm
Header / BrandSonicWALL
Miscellaneous / Product ColorBlack
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • 5 Gigabit Ethernet
  • Gigabit Ethernet
Networking / Form FactorDesktop
Networking / TypeSecurity appliance
Packaged Quantity1
Dimensions & Weight (Shipping)
Shipping Weight2.08 kg
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 3 x 1000Base-T - RJ-45
  • 2 x 1000Base-T - RJ-45 (WAN)
  • 2 x network - SFP+
  • 2 x USB 3.0 - Type A
  • 1 x console - RJ-45
  • 1 x console - micro-USB
  • 5 x 1000Base-T (PoE) - RJ-45
General
Bundled Services3 years TotalSecure
Depth15 cm
Device TypeSecurity appliance
Height3.5 cm
Weight990 g
Width22.5 cm
IP Telephony
VoIP ProtocolsSIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
Miscellaneous
Cables Included
  • 1 x network cable
  • 1 x serial cable
Compliant StandardsFCC Class A certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, EMC, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, VCCI Class A, MSIP, Common Criteria
MTBF31.7 years
Networking
Authentication MethodRADIUS, LDAP, XAUTH authentication
Capacity
  • Virtual interfaces (VLANs): 256
  • SSL VPN licenses: 2 (maximum 200)
  • VPN tunnels (site-to-site): 200
  • IPSec VPN clients: 10 (maximum 500)
  • SPI connections: 1250000
  • DPI connections: 400000
  • DPI SSL connections: 30000
  • Single Sign-On (SSO) users: 2500
  • Manageable access points: 32
Connectivity TechnologyWired
Data Link ProtocolGigabit Ethernet, 5 Gigabit Ethernet
Encryption AlgorithmDES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
FeaturesFirewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Deep Packet Inspection (DPI), DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN support
Form FactorDesktop
Network / Transport ProtocolTCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
Performance
  • Firewall throughput: 4 Gbps
  • Threat prevention throughput: 2 Gbps
  • Application throughput: 2.5 Gbps
  • IPS throughput: 2.5 Gbps
  • Anti-malware throughput: 2 Gbps
  • TLS/SSL inspection and decryption throughput: 750 Mbps
  • VPN throughput (IPSec): 1.8 Gbps
  • Connection rate: 16000 connections per second
Remote Management ProtocolSNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Status IndicatorsPower, test mode, link/activity, SSD activity, secure
Power
Power Consumption Operational108.75 Watt
Power DeviceExternal power adapter
Power Over Ethernet (PoE) SupportedPoE+
Power Provided180 Watt
Power RedundancyOptional
Voltage RequiredAC 120/230 V (50/60 Hz)
Software / System Requirements
OS ProvidedSonicOS 7.0
Software IncludedSonicWall Advanced Protection Service Suite (3 years)
