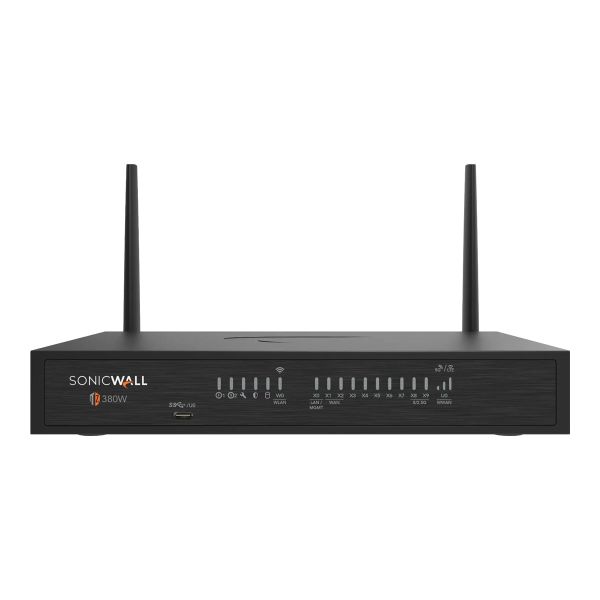

SonicWall TZ Series (Gen 8) TZ 380

Availability: In stock
SKU
03-SSC-6970
UPC Code
758479369707
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The SonicWall TZ 380 is engineered to provide advanced security for small to medium-sized businesses, ensuring protection against emerging threats. With the capacity to support 1,000 authenticated users, 200 VPN tunnels, and advanced DPI connections, this security appliance is a powerful network guardian. Its support for multiple protocols, including VoIP and a wide array of security features such as Intrusion Prevention System (IPS), anti-malware, and various encryption algorithms, ensures reliable and secure network operations. Additionally, the ability to handle significant throughput, combined with high availability features, makes it a vital component for any organization's IT infrastructure. Designed for operational efficiency, the TZ 380 operates effectively in a range of environmental conditions, with a maximum temperature limit of 40 °C and humidity resilience of 5-95%. This makes it suitable for various deployment scenarios. With connectivity options ranging from wired Gigabit Ethernet to wireless protocols like Wi-Fi 6, users can manage their network resources while benefiting from enhanced speed and security. The SonicWall TZ 380 represents a vital investment for businesses aiming to strengthen their network security posture and enhance operational continuity.
General Information
CategoryFirewall appliances
DescriptionSonicWall TZ Series (Gen 8) TZ 380 - Security appliance - 1GbE, 2.5GbE, 5GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - desktop
ManufacturerSonicWall
MSRP$780.00
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth13 cm
Dimensions & Weight / Height3.5 cm
Dimensions & Weight / Weight820 g
Dimensions & Weight / Width19 cm
Header / BrandSonicWALL
Miscellaneous / Product ColorBlack
Networking / Connectivity Technology
  • Wired
  • Wireless
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Form FactorDesktop
Networking / TypeSecurity appliance
Packaged Quantity1
System Requirements / OS Required
  • Apple MacOS X
  • Linux
  • Microsoft Windows 10 / 11
Antenna
AntennaExternal
Antenna Qty2
Dimensions & Weight (Shipping)
Shipping Depth22.8 cm
Shipping Height7.2 cm
Shipping Weight1.41 kg
Shipping Width23 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 8 x 1000Base-T - RJ-45
  • 2 x 1/2.5/5GBase-T - SFP
  • USB 3.0 - Type C
  • 1 x console - micro-USB
General
Depth13 cm
Device TypeSecurity appliance
Height3.5 cm
Weight820 g
Width19 cm
IP Telephony
VoIP ProtocolsSIP, H.323 v1.5
Miscellaneous
Compliant StandardsFCC Class B certified, ICES Class B, EMC, LVD, RoHS, UL, cUL, Mexico DGN notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC, VCCI Class B, KCC, MSIP, BSMI, MTCTE, TEC, WPA
MTBF46.4 years
Networking
Authentication MethodLDAP, XAUTH authentication, RADIUS, TACACS+, SAML, NTLM
Capacity
  • Virtual interfaces (VLANs): 128
  • SSL VPN licenses: 2 (maximum 100)
  • VPN tunnels (site-to-site): 200
  • IPSec VPN clients: 5 (maximum 200)
  • SPI connections: 1100000
  • DPI connections: 250000
  • TLS connections: 40000
  • Authenticated users (internal database): 1000
Compliant StandardsIEEE 802.3, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11i
Connectivity TechnologyWired, wireless
Data Link ProtocolGigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Encryption AlgorithmDES, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-256, SHA-384, ISAKMP, IKE, WPA2, WPA3, EAP-PEAP, EAP-TTLS
FeaturesFirewall protection, Dead Peer Detection (DPD), DHCP over VPN, IPSec NAT-Traversal (NAT-T), gateway mode, VPN support, VLAN support, NAT support, anti-virus protection, anti-spyware protection, Intrusion Prevention System (IPS), TLS decryption, Content Filtering Service (CFS), anti-spam protection, DNS filtering, DHCP server, DHCP relay, LDAP support, IPv6 support, VLAN trunking, PAT support, High Availability
Form FactorDesktop
Frequency Band2.4 GHz, 5 GHz
Network / Transport ProtocolDHCP, PPPoE, L2TP, PPTP, TCP/IP, UDP, HTTP, HTTPs, IPSec, IPv6
Performance
  • Firewall throughput: 3.5 Gbps
  • Threat prevention throughput: 1.5 Gbps
  • Application throughput: 2 Gbps
  • IPS throughput: 2 Gbps
  • Anti-malware throughput: 2 Gbps
  • TLS/SSL inspection and decryption throughput: 600 Mbps
  • VPN throughput (IPSec): 1.6 Gbps
  • Connection rate: 15000 connections per second
Remote Management ProtocolCLI, SSH, Web GUI, RestAPI, ICMP, SNMP
Routing ProtocolRIP, OSPF, BGP, static IP routing, policy-based routing (PBR)
Status IndicatorsPower, test mode, wireless, link/activity, secure
Power
Power DeviceExternal power adapter
Power RedundancyYes
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
OS ProvidedSonicOS 8.0
OS RequiredLinux, Microsoft Windows 10 / 11, Apple MacOS X
