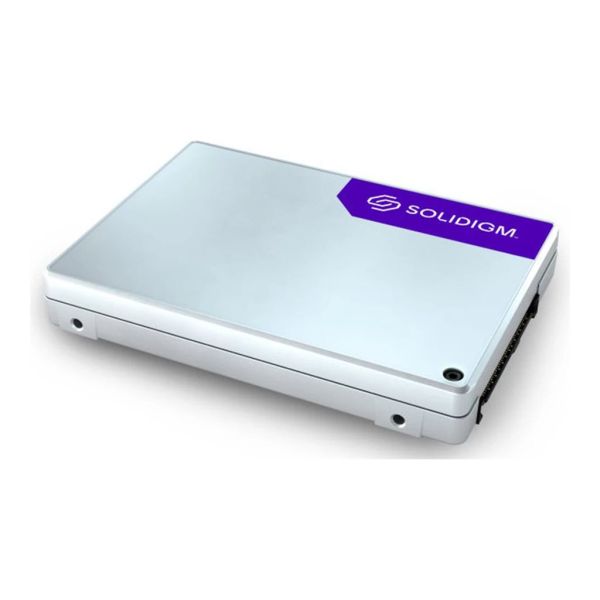

Solidigm P5620 - SSD

Be the first to review this product

Availability: Out of stock

SKU

4XB7B01882

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Solidigm P5620 - SSD - Mixed Use - encrypted - 12.8 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SR635 7Y98, 7Y99; ST650 V2 7Z74, 7Z75

Specifications

General Information
Category	Hard drives
Description	Solidigm P5620 - SSD - Mixed Use - encrypted - 12.8 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SR635 7Y98, 7Y99; ST650 V2 7Z74, 7Z75
Manufacturer	Lenovo
MSRP	$45,199.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	15 mm
Dimensions & Weight / Weight	146 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	12.8 TB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	U.2 PCIe 4.0 x4 (NVMe)
Hard Drive / Interface	U.2 PCIe 4.0 x4 (NVMe)
Header / Brand	Solidigm
Packaged Quantity	1
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SR635 7Y98, 7Y99 Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Shock Tolerance (operating)	1000 g @ 0.5 ms
Vibration Tolerance (operating)	2.17 gRMS @ 5-700 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x U.2 PCIe 4.0 x4 (NVMe)
General
Capacity	12.8 TB
Depth	100 mm
Device Type	Solid state drive - hot-swap
EU Data Act	Https://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/
Features	Thermal Monitoring, Thermal throttling, 144-layer Intel 3D NAND TLC, Enhanced Power Loss Data Protection, End-to-end data protection, Instant Secure Erase (ISE), ultra-low I/O latency, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	15 mm
Interface	U.2 PCIe 4.0 x4 (NVMe)
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	146 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE 2002/96/EC
Performance
4KB Random Read	1000000 IOPS
4KB Random Write	374000 IOPS
Average Latency	10 µs
Drive Class	Mixed Use
Drive Writes Per Day (DWPD)	2.8
Internal Data Rate	7.1 GBps (read) / 3.7 GBps (write)
SSD Endurance	65.4 PB
Power
Power Consumption	25 Watt (read) 25 Watt (write)
Reliability
MTBF	2,000,000 hours
Recoverable Errors	1 per 10^17
