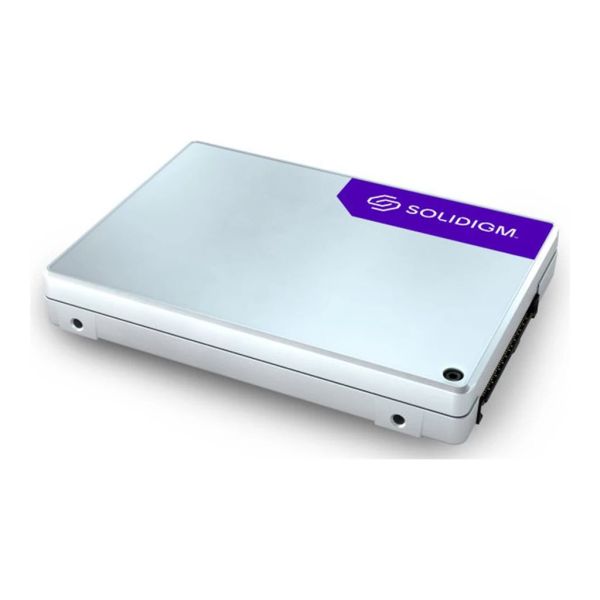

Solidigm P5520 - SSD

Be the first to review this product

Availability: Out of stock

SKU

4XB7B01873

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Solidigm P5520 - SSD - Read Intensive - encrypted - 7.68 TB - hot-swap - 3.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SR630 V4; SR645 V3; SR650 V3; SR650 V4; SR650a V4; SR655 V3; SR665 V3

Specifications

General Information
Category	Hard drives
Description	Solidigm P5520 - SSD - Read Intensive - encrypted - 7.68 TB - hot-swap - 3.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SR630 V4; SR645 V3; SR650 V3; SR650 V4; SR650a V4; SR655 V3; SR665 V3
Manufacturer	Lenovo
MSRP	$20,999.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	15 mm
Dimensions & Weight / Weight	146 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	7.68 TB
Hard Drive / Form Factor	3.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	U.2 PCIe 4.0 x4 (NVMe)
Hard Drive / Interface	U.2 PCIe 4.0 x4 (NVMe)
Header / Brand	Solidigm
Packaged Quantity	1
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SR630 V4 7DG9 Lenovo ThinkSystem SR645 V3 7D9C Lenovo ThinkSystem SR650 V3 7D75, 7D76 Lenovo ThinkSystem SR650 V4 7DGD Lenovo ThinkSystem SR650a V4 7DGD Lenovo ThinkSystem SR655 V3 7D9E, 7D9F Lenovo ThinkSystem SR665 V3 7D9A, 7D9B
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Shock Tolerance (operating)	1000 g @ 0.5 ms
Vibration Tolerance (operating)	2.17 gRMS @ 5-700 Hz
Expansion & Connectivity
Compatible Bay	3.5"
Interfaces	1 x U.2 PCIe 4.0 x4 (NVMe)
General
Capacity	7.68 TB
Depth	100 mm
Device Type	Solid state drive - hot-swap
EU Data Act	Https://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/
Features	Thermal throttling, Thermal Monitoring, 144-layer Intel 3D NAND TLC, Enhanced Power Loss Data Protection, End-to-end data protection, Instant Secure Erase (ISE), S.M.A.R.T.
Form Factor	3.5"
Hardware Encryption	Yes
Height	15 mm
Interface	U.2 PCIe 4.0 x4 (NVMe)
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	146 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE 2002/96/EC
Performance
4KB Random Read	1100000 IOPS
4KB Random Write	220000 IOPS
Average Latency	10 µs
Drive Class	Read Intensive
Drive Writes Per Day (DWPD)	1
Internal Data Rate	7.1 GBps (read) / 4.2 GBps (write)
SSD Endurance	14 PB
Power
Power Consumption	18 Watt (read) 18 Watt (write)
Reliability
Recoverable Errors	1 per 10^17
