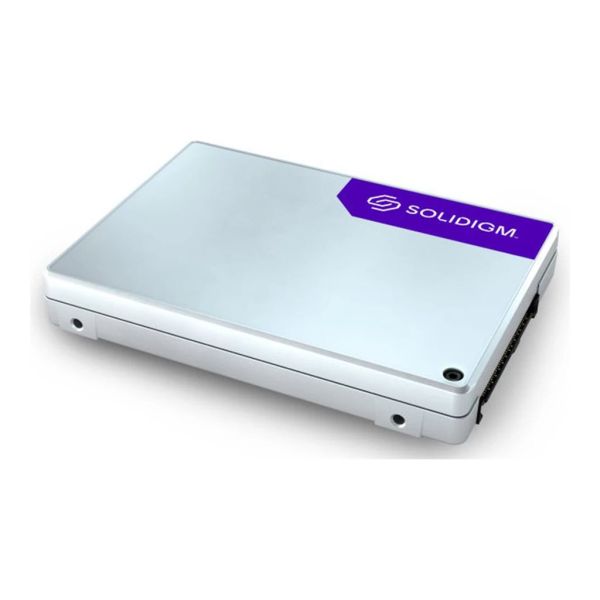

Solidigm P5520 - SSD

Availability: Out of stock
SKU
4XB7B01868
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo Solidigm P5520 is a solid state drive designed for performance and durability. With a capacity of 3.84 TB, this drive is suitable for read-intensive applications, delivering fast data access with an internal data rate of 6.7 GBps and write performance of 3.6 GBps. It ensures data integrity with features like end-to-end data protection, enhanced power loss data protection, and thermal monitoring, making it suitable for various operating environments with temperatures ranging from 0°C to 70°C. Built to meet environmental standards, the P5520 operates effectively in humidity levels of 5% to 90% and offers an endurance rating of 7 PB. With support for instant secure erase (ISE) and compliance with industry standards, this drive supports data security and reliability. The 2.5" form factor and hot-swap capability further increase its versatility in enterprise-level applications, catering to the demands of data storage solutions.
General Information
CategoryHard drives
DescriptionSolidigm P5520 - SSD - Read Intensive - encrypted - 3.84 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SR630 V4 7DG9; SR650 V4 7DGD; SR650a V4 7DGD; ST650 V3 7D7A
ManufacturerLenovo
MSRP$13,199.00
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth100 mm
Dimensions & Weight / Height15 mm
Dimensions & Weight / Weight146 g
Dimensions & Weight / Width70 mm
Hard Drive / Capacity3.84 TB
Hard Drive / Form Factor2.5"
Hard Drive / Hard Drive TypeHot-swap hard drive
Hard Drive / InterfaceU.2 PCIe 4.0 x4 (NVMe)
Hard Drive / InterfaceU.2 PCIe 4.0 x4 (NVMe)
Header / BrandSolidigm
Packaged Quantity1
Storage / TypeSolid state drive
Compatibility Information
Designed For
  • Lenovo ThinkSystem SR630 V4 7DG9
  • Lenovo ThinkSystem SR650 V4 7DGD
  • Lenovo ThinkSystem SR650a V4 7DGD
  • Lenovo ThinkSystem ST650 V3 7D7A
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature70 °C
Min Operating Temperature0 °C
Shock Tolerance (operating)1000 g @ 0.5 ms
Vibration Tolerance (operating)2.17 gRMS @ 5-700 Hz
Expansion & Connectivity
Compatible Bay2.5"
Interfaces1 x U.2 PCIe 4.0 x4 (NVMe)
General
Capacity3.84 TB
Depth100 mm
Device TypeSolid state drive - hot-swap
EU Data ActHttps://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/
FeaturesThermal throttling, Thermal Monitoring, 144-layer Intel 3D NAND TLC, Enhanced Power Loss Data Protection, End-to-end data protection, Instant Secure Erase (ISE), S.M.A.R.T.
Form Factor2.5"
Hardware EncryptionYes
Height15 mm
InterfaceU.2 PCIe 4.0 x4 (NVMe)
NAND Flash Memory Type3D triple-level cell (TLC)
Weight146 g
Width70 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant StandardsFCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE 2002/96/EC
Performance
4KB Random Read1100000 IOPS
4KB Random Write200000 IOPS
Average Latency10 µs
Drive ClassRead Intensive
Drive Writes Per Day (DWPD)1
Internal Data Rate6.7 GBps (read) / 3.6 GBps (write)
SSD Endurance7 PB
Power
Power Consumption
  • 15 Watt (read)
  • 15 Watt (write)
Reliability
Recoverable Errors1 per 10^17
