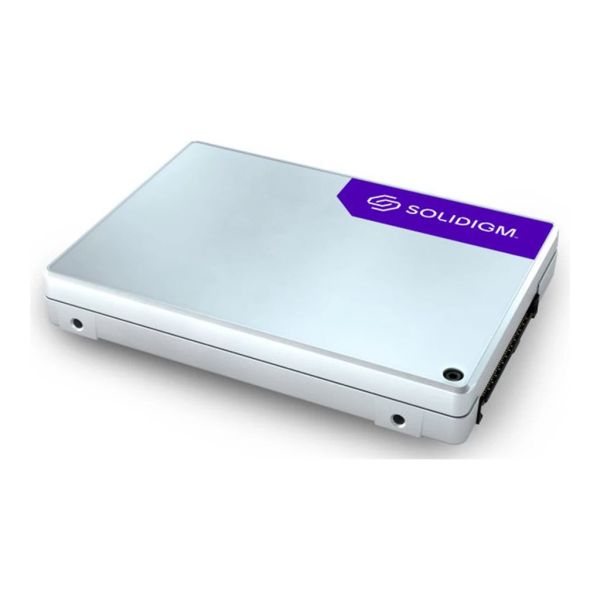

Solidigm P5520 - SSD
The Lenovo Solidigm P5520 is a 2.5" hot-swap hard drive designed for demanding data environments. With a capacity of 1.92 TB and an internal data rate of 5.3 GBps, this drive is well-suited for read-intensive tasks. The incorporation of 3D triple-level cell (TLC) NAND flash memory ensures robust data storage, while features such as thermal throttling and thermal monitoring enhance reliability under varying conditions. Equipped with encryption options, including self-encrypting capabilities, this drive provides security for sensitive data. Designed to operate within a wide temperature range from 0°C to 70°C and withstand considerable shock and vibration, the Lenovo Solidigm P5520 is reliable for enterprise applications. With a recovery error rate of 1 per 10^17 and a drive writes per day (DWPD) of 1, it demonstrates endurance that supports an SSD endurance rating of 3.5 PB. This makes it a choice for organizations requiring efficient, secure, and high-speed storage solutions.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Solidigm P5520 - SSD - Read Intensive - encrypted - 1.92 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SR630 V2; SR630 V4; SR635; SR650 V2; SR650 V4; SR650a V4; ST650 V2; ST650 V3 |
| Manufacturer | Lenovo |
| MSRP | $6,999.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 146 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 1.92 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Solidigm |
| Packaged Quantity | 1 |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 1.92 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| EU Data Act | Https://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/ |
| Features | Thermal throttling, Thermal Monitoring, 144-layer Intel 3D NAND TLC, Enhanced Power Loss Data Protection, End-to-end data protection, Instant Secure Erase (ISE), S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 146 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE 2002/96/EC |
| Performance | |
| 4KB Random Read | 700000 IOPS |
| 4KB Random Write | 114000 IOPS |
| Average Latency | 10 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 5.3 GBps (read) / 1.9 GBps (write) |
| SSD Endurance | 3.5 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| Recoverable Errors | 1 per 10^17 |
