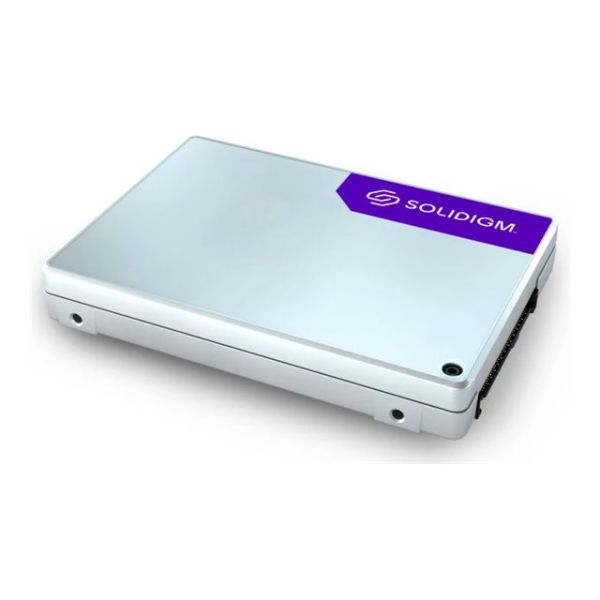

Solidigm P5336 - SSD
The Lenovo Solidigm P5336 is a robust hot-swap hard drive designed to provide efficiency and performance. With a capacity of 7.68 TB, it utilizes advanced 3D QLC NAND flash technology to ensure reliable data storage and rapid access. This SSD features a sleek 2.5-inch form factor and supports U.2 PCIe 4.0 x4 (NVMe) interface, reaching internal data rates of up to 3.1 GBps for read operations and 1.7 GBps for write operations. Engineered for durability, the P5336 handles varying environmental conditions, operating seamlessly within temperatures from 0°C to 70°C and surviving storage conditions as low as -55°C to as high as 95°C. With a mean time between failures (MTBF) of 2,000,000 hours and compliance with a range of international standards, this SSD ensures reliability and robust data protection through features like thermal throttling, power loss data protection, and end-to-end data protection. Ideal for read-intensive applications, the P5336 combines performance with protection, making it a choice for demanding storage environments.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Solidigm P5336 - SSD - Read Intensive - encrypted - 7.68 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.01 |
| Manufacturer | Lenovo |
| MSRP | $20,599.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 146 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 7.68 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Solidigm |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 95 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 7.68 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Thermal throttling, Thermal Monitoring, power loss data protection, End-to-end data protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Weight | 146 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Title 47, CAN/CSA-CEI/IEC CISPR 22:02, EN 55024:1998, EN 55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE Directive 2002/96/EC |
| Performance | |
| 4KB Random Read | 770000 IOPS |
| 4KB Random Write | 15000 IOPS |
| Average Latency | 9 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.42 |
| Internal Data Rate | 3.1 GBps (read) / 1.7 GBps (write) |
| SSD Endurance | 5.9 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 1 per 10^17 |
