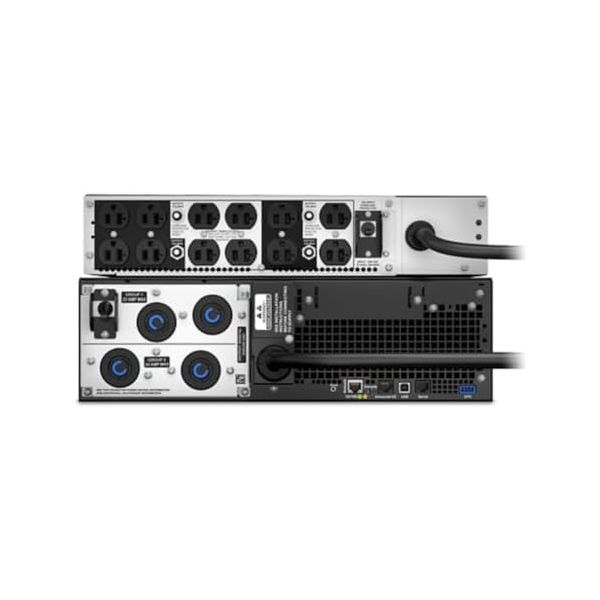

SMARTUPS SRT 5000VA RM 208V TO120V 2U STEPDOWN TRANSF DS ONLY

Be the first to review this product

Availability: In stock

SKU

SRT5KRMXLT-5KTF

UPC Code

779184405900

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 12 NEMA 5-20R, 2 NEMA L6-30R, and 2 NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Specifications

General Information
Category	Power conditioning equipment
Description	SMARTUPS SRT 5000VA RM 208V TO120V 2U STEPDOWN TRANSF DS ONLY
Manufacturer	APC by Schneider Electric
MSRP	$12,505.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	71.9 cm
Dimensions & Weight / Height	21.8 cm
Dimensions & Weight / Weight	98.88 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	16
Power Device / Power Capacity (VA)	5000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 208 V
Product Type	UPS
Service & Support / Type	3-year warranty
Battery
Features	Maintenance free, sealed, leak-proof
Recharge Time	1.5 hour(s)
Run Time (Up To)	4 min at full load 13 min at half load
Technology	Lead acid
Compatibility Information
Designed For	P/N: SRT192RMBP, SRT192RMBPUS
Dimensions & Weight
Depth	71.9 cm
Height	21.8 cm
Weight	98.88 kg
Width	43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth	96 cm
Shipping Height	58.4 cm
Shipping Weight	117.93 kg
Shipping Width	62.2 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	55 dBA
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x SmartSlot
Interfaces	1 x management (Ethernet) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off) 1 x serial - RJ-45
General
Bundled with	208V to 120V Step-Down Transformer
Color	Black
Cord Length	3.05 m
Device Type	UPS - rack-mountable
Height (Rack Units)	5U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - battery - 2 years
Miscellaneous
Cables Included	Power cable 3.05 m
Compliant Standards	UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20
Features	User-replaceable removable battery, audible alarm, LCD display
Pricing Type	APC Take-Back
Rack Mounting Kit	Included
Networking
Remote Management Interface	Ethernet 10/100, USB
Power Device
Frequency Provided	50/60 Hz
Frequency Required	40 - 70 Hz
Input Connectors	1 x power NEMA L6-30
Input Voltage	AC 208 V
Input Voltage Range	AC 160 - 275 V
Input Wiring	1-phase
Output Voltage	AC 120 V ± 2% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	4800 watt / 5000 VA
Power Output Connectors Details	12 x power NEMA 5-20R 2 x power NEMA L6-20R 2 x power NEMA L6-30R
Surge Energy Rating	480 joules
Surge Suppression	Yes
UPS Technology	On-line
Sustainability Information
ENERGY STAR	Yes
Packaging Recycled Content	Made of recycled cardboard
