Smartboard SBM685-Bronze Complete Package Smartboard (87")
secure transactionSmartboard SBM685-Bronze Complete Package Smartboard (87")
Your SMART Board® M685 interactive whiteboard features a durable interactive surface, two damage-resistant pens and SMART’s proprietary DViT® (Digital Vision Touch) technology. The SBM685 model supports dual touch, dual write and intuitive gestures, such as toss, rotate and zoom, available with multitouch operating systems, such as Windows® 7 or Mac Snow Leopard.
- 87" Nominal Size
- Aspect Ratio 16:10
- 12000:1 Contrast Ratio
- HDMI® male to HDMI® male Connector
- Ultra-Short-Throw Laser Projector
- Dimensions : 17.5” x 14.8” x 5.2” (456 x 376 x 132mm)
- Weight : 23.1 lbs (10.5 kg)
- Lamp Life : 20,000 Hours (Laser Phosphor Light Engine)
- Speaker : 10W
Smartboard SBM685-Bronze Complete Package Smartboard (87")

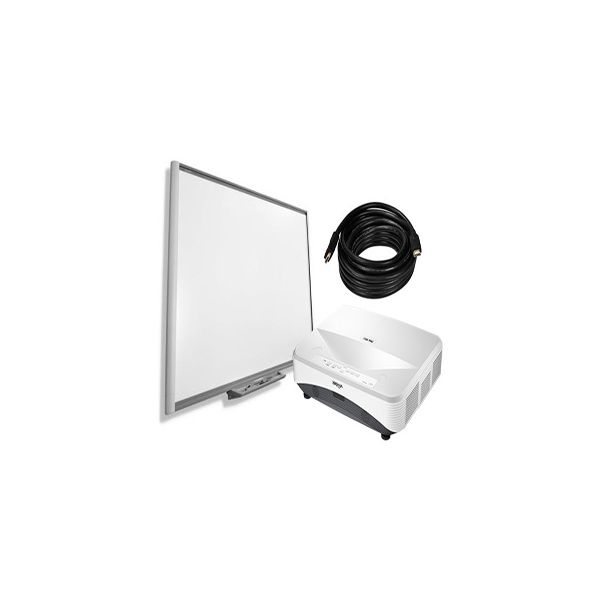

Model: SBM685-Bronze Description Complete Smartboard 87" Package Package Includes SMARTBOARD SBM685 - 87" Diagonal Interactive Whiteboard
Vivitek DW763Z-UST Ultra Short Throw Laser Projector with Mount included
Misc 25FT-HDMI - HDMI® male to HDMI® male ConnectorSMARTBOARD SBM685 Dimensions and weights Screen Size 221 cm (87") Diagonal Aspect Ratio 16:10 Weight 23.1 kg (51 lb.) Shipping dimensions 208.3 cm W × 134.6 cm H × 11.4 cm D
(82" × 53" × 4 1/2")Shipping weight 31.3 kg (69 lb.) Temperature Storage -20°C to 50°C (-4°F to 122°F) Operation 5°C to 35°C (41°F to 95°F) with up to 80% humidity, non-condensing Others Digitizing technology Four-camera DViT Frame finish White and light gray (approximates PANTONE® Cool Gray 4C) Power requirements 1.8 m (6') power cable. Power consumption is less than 7 W (100V to 240V AC, 50/60 Hz, 5V DC 2.0A). Computer connection Includes a 5m (16') USB 2.0 cable to connect to the room computer. Your SMART Board M680 interactive whiteboard supports one computer connection on a primary display only. Certification and compliance Regulatory certification CSA (U.S./Canada) Environmental compliance China EIP European Union REACH, RoHS, WEEE, Packaging and ErP Standby U.S. Packaging and Conflict Minerals Purchasing information (Order numbers) SBM685 221 cm (87") diagonal SMART Board M685 interactive whiteboard with an active pen tray.
Includes a SMART Notebook software installation DVD.SBM685-B Bulk order of 10 SBM685 units Warranty Two-year limited equipment warranty Misc 25FT-HDMI Connector Type HDMI® male to HDMI® male Connector Finish Gold Length 25ft Gauge 26AWG # of conductors 19 Conductor Plating Tin Shielding level Triple Shielding type EMI Ferrite Cores No HDMI® connector Head Measures 26 x 10.5 x 68.5 mm HDMI® Connector Diameter 8.5 mm Net Jacket No Built-in Equalizer No Supported Resolutions 480i to 1080i Rated Bandwidth tested to 165 Mhz HDMI® Certified Yes HDCP Compliant Yes CEC Compliant Yes ROHS Compliant Yes Supports DVD Audio Yes Supports SACD Yes Supports Dolby TrueHD™ & DTS-HD Master Audio™ Yes UL Specs UL File # E119932 UL Style # 20276 CL2 (In-Wall) Yes VW-1 Yes Voltage Rating 30V Temperature Rating 80° C Vivitek DW763Z-UST (Incl.Mount) Description Ultra-Short-Throw Laser Projector Brightness (Lumens) 3500 ANSI Lumens Native Resolution WXGA (1280 x 800) Contrast Ratio 12,000:1 (Full On/Off) Display Technology Laser; DLP® Throw Ratio (±3%) 0.24:1 Projection Distance 11.8" to 30.7" (300 - 780mm) Image Size 80" - 150" (2032 to 3810 mm) Diagonal Zoom Ratio Fixed Aspect Ratio 16:10 Offset 130% ±5% I/O Port HDMI v1.4 (x2), Composite Video, Component-In, S-Video, VGA-In, Audio-In RCA (L/R), Audio-In (Mini-Jack), VGA-Out, Audio-Out RCA (Mini-Jack), RJ45, RS-232, USB Type A Power (5V/1.5A), Mini-USB Type B (Service) Dimensions 17.5” x 14.8” x 5.2” (456 x 376 x 132mm) Weight 23.1 lbs (10.5 kg) Lamp Life 20,000 Hours (Laser Phosphor Light Engine) Speaker 10W
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
