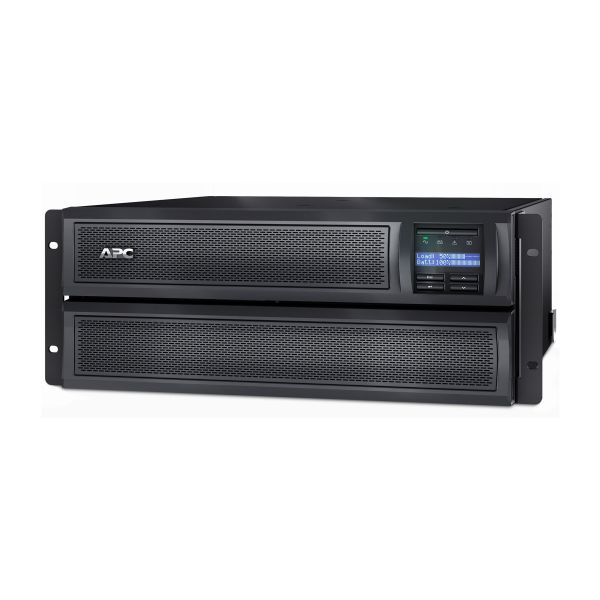

SMART UPS X 3000VA RT 100/127V L5-30P LCD
- Yes, Smart-UPS SMX3000LV supports up to 10 APC external battery packs SMX120BP.:
- Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute Software.:
- Select models with an "NC" suffix come with the network management card preinstalled.:
- APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
- Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on and off, and perform non-critical load-shedding of equipment.:
- PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SMART UPS X 3000VA RT 100/127V L5-30P LCD |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,600.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.2 cm |
| Dimensions & Weight / Height | 17.8 cm |
| Dimensions & Weight / Weight | 38.64 kg |
| Dimensions & Weight / Width | 48.3 cm |
| Header / Brand | APC |
| Header / Country Kits |
|
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 10 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 2 ms |
| Dimensions & Weight | |
| Depth | 43.2 cm |
| Height | 17.8 cm |
| Weight | 38.64 kg |
| Width | 48.3 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 63.3 cm |
| JTFpping Height | 33 cm |
| JTFpping Weight | 47.73 kg |
| JTFpping Width | 58.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Internal |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Localization | Canada, United States |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CSA, TUV, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries |
| Included Accessories | Tower stand |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30 |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 70 - 153 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 540 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
