Smart Ups X 2200Va Rack Tower Lcd 100-127V Taa

Availability: Out of stock
SKU
SMX2200RMLVUS
UPC Code
731304340379
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.

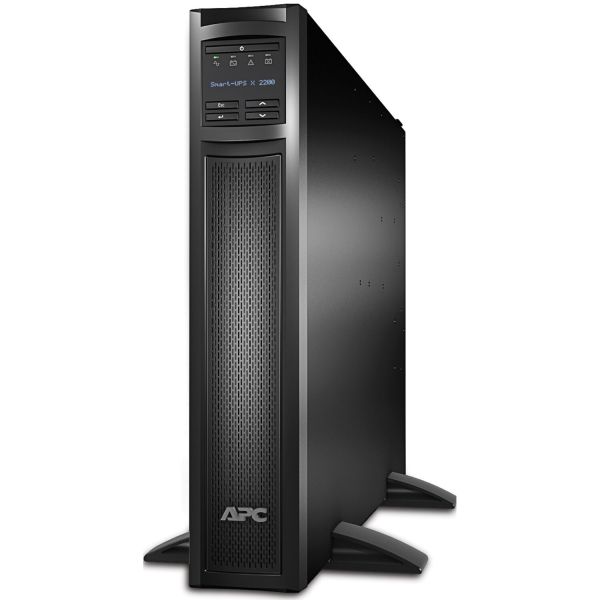

Product image SMX2200RMLVUS
  • Yes, Smart-UPS SMX2200RMLVUS supports up to 10 APC external battery packs SMX120RMBP2U.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
General Information
CategoryPower conditioning equipment
DescriptionSmart Ups X 2200Va Rack Tower Lcd 100-127V Taa
ManufacturerAPC by Schneider Electric
MSRP$3,565.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth66.7 cm
Dimensions & Weight / Height8.5 cm
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management InterfaceUSB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Quantity1
Run Time (Up To)
  • 9.8 min at full load
  • 25.3 min at half load
TechnologyLead acid
Dimensions & Weight
Depth66.7 cm
Height8.5 cm
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth86.9 cm
Shipping Height24.3 cm
Shipping Width59.6 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
General
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Compliant StandardsCSA, TUV, BSMI, NOM, UL 1778, VCCI Class A ITE, EN55022 Class A, EN 50091-2, FCC Part 15 A
FeaturesUser-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
TAA CompliantYes
Networking
Remote Management InterfaceUSB
Power Device
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power NEMA L5-30P
Input VoltageAC 120 V
Input Voltage RangeAC 70 - 153 V
Input Wiring1-phase
Output VoltageAC 120 V 50/60 Hz
Output WaveformSinewave
Power Capacity1980 watt / 2200 VA
Power Output Connectors Details
  • 6 x power NEMA 5-15R
  • 2 x power NEMA 5-20R
Surge SuppressionYes
UPS TechnologyLine interactive
Sustainability Information
ENERGY STARYes
Packaging Recycled ContentMade of recycled cardboard
