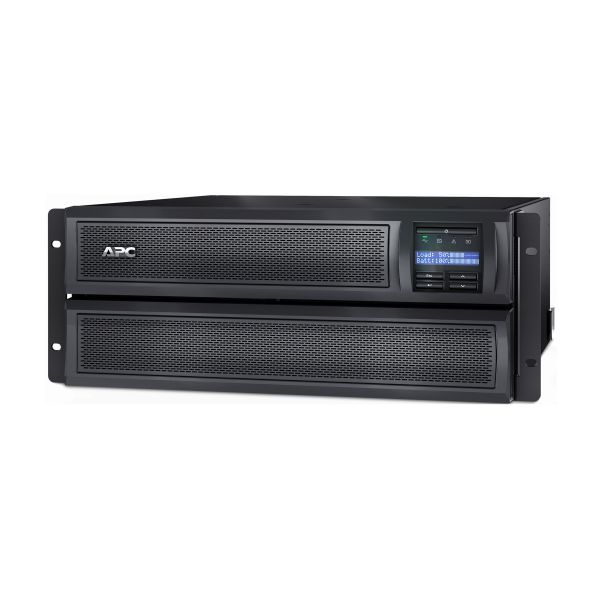

SMART UPS X 2000VA RT 100/127VNEMA 5-20P LINE-INT LCD

Availability: Out of stock
SKU
SMX2000LV
UPC Code
731304292586
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
General Information
CategoryPower conditioning equipment
DescriptionSMART UPS X 2000VA RT 100/127VNEMA 5-20P LINE-INT LCD
ManufacturerAPC by Schneider Electric
MSRP$2,955.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth48.3 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight38.64 kg
Dimensions & Weight / Width17.8 cm
Header / BrandAPC
Header / Country Kits
  • Canada
  • United States
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty10
Power Device / Power Capacity (VA)1920 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Quantity1
Recharge Time3 hours
Run Time (Up To)
  • 11 min at full load
  • 28 min at half load
TechnologyLead acid
Transfer Time2 ms
Dimensions & Weight
Depth48.3 cm
Height43.2 cm
Weight38.64 kg
Width17.8 cm
Dimensions & Weight (JTFpping)
JTFpping Depth63.3 cm
JTFpping Height33 cm
JTFpping Weight47.73 kg
JTFpping Width58.6 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
General
Battery Enclosure TypeInternal
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)4U
LocalizationCanada, United States
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables Included
  • Serial cable - external
  • USB cable - external
  • Power cable 2.44 m
Compliant StandardsCSA, TUV, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A
FeaturesAudible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries
Included AccessoriesTower stand
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Frequency Provided47 - 53 / 57 - 63 Hz
Frequency Required50/60 Hz
Input Connectors1 x power NEMA 5-20
Input VoltageAC 120 V
Input Voltage RangeAC 70 - 153 V
Input Voltage Range (Adjustable)AC 75 - 154 V
Input Wiring1-phase
Output VoltageAC 120 V ± 5% - 47 - 53 / 57 - 63 Hz
Output WaveformSinewave
Power Capacity1800 Watt / 1920 VA
Power Output Connectors Details
  • 6 x power NEMA 5-15R
  • 3 x power NEMA 5-20R
  • 1 x power NEMA L5-20R
Surge Energy Rating540 Joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedDrivers & Utilities
