Smart-Ups X 1500Va Rack/Tower Lcd 120V W/Networkcard&Smartco

Availability: In stock
SKU
SMX1500RM2UCNC
UPC Code
731304401148
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1440VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

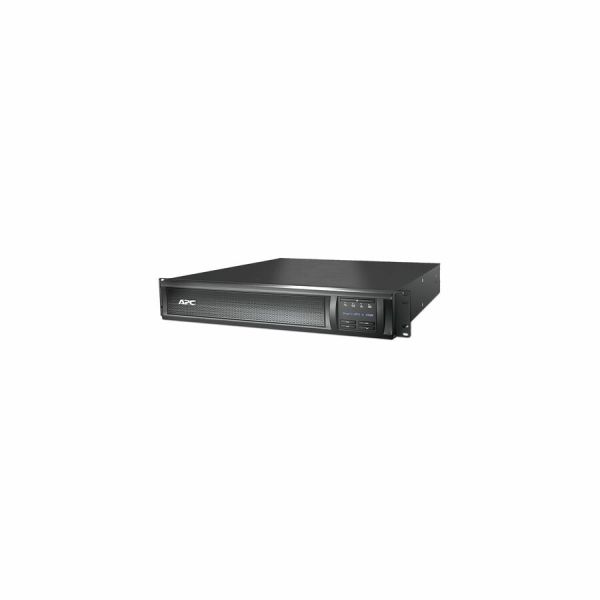

Product image SMX1500RM2UCNC
Product image SMX1500RM2UCNC
Product image SMX1500RM2UCNC
  • Yes, Smart-UPS supports up to 5 APC external battery pack SMX48RMBP2U.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.:
  • PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
  • PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
General Information
CategoryPower conditioning equipment
DescriptionSmart-Ups X 1500Va Rack/Tower Lcd 120V W/Networkcard&Smartco
ManufacturerAPC by Schneider Electric
MSRP$2,670.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth49 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight24.82 kg
Dimensions & Weight / Width8.9 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)1500 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
FeaturesMaintenance free, sealed, leak-proof
Run Time (Up To)
  • 5 min at full load
  • 14.8 min at half load
  • 64.87 min at 200 Watts
  • 24.47 min at 500 Watts
  • 14.68 min at 700 Watts
  • 8.98 min at 1000 Watts
TechnologyLead acid
TypeExpandable
Compatibility Information
Designed ForP/N: SMX48RMBP2U, SMX48RMBP2US
Dimensions & Weight
Depth49 cm
Height43.2 cm
Weight24.82 kg
Width8.9 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission45 dBA
Expansion / Connectivity
Expansion Slots1 SmartSlot
Interfaces
  • 1 x management (USB)
  • 1 x EPO (emergency power off)
  • 1 x serial - RJ-45
  • 1 x LAN - RJ-45
  • Management (Ethernet) - RJ-45
  • SmartConnect
General
Bundled withAPC SmartConnect
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables IncludedPower cable - integrated
Compliant StandardscUL, UL 1449, UL 1778, FCC Part 15, RoHS, REACH
FeaturesUser-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries, Green Function, 3 switched outlet groups, EcoStruxure Ready
Included AccessoriesTower stand
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet, USB, serial
Remote Management ProtocolDHCP, IPv4
Power Device
Circuit ProtectionCircuit breaker
Efficiency98.85% at 100% Green mode (on-line)
Frequency Provided50/60 Hz
Frequency Required47 - 63 Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Input Voltage RangeAC 82 - 144 V
Input Voltage Range (Adjustable)AC 75 - 154 V
Input Wiring1-phase
Output VoltageAC 120 V ± 2% - 50/60 Hz
Output WaveformSinewave
Power Capacity1350 watt / 1500 VA
Power Factor (PF)0.9
Power Output Connectors Details8 x power NEMA 5-15R
Surge Energy Rating540 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Sustainability Information
ENERGY STARYes
Packaging Recycled ContentMade of recycled cardboard
