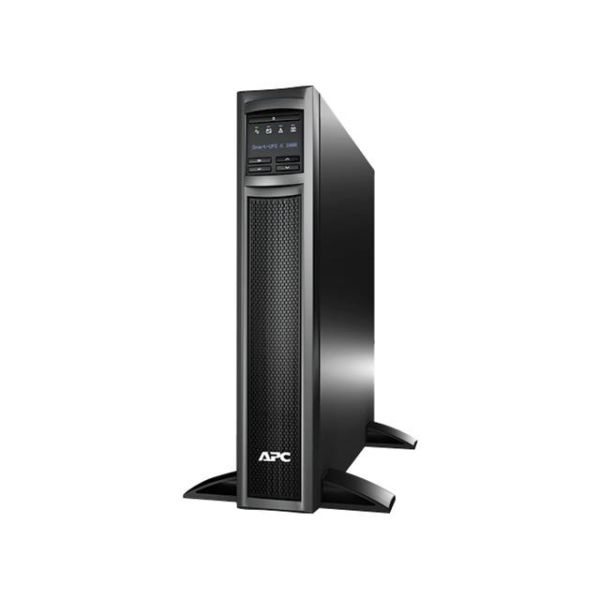

SMART-UPS X 1000VA RT 230V C14 10OUT C13 JUMPERS LCD
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
| General Information | |
|---|---|
| Category | Power supply units |
| Description | SMART-UPS X 1000VA RT 230V C14 10OUT C13 JUMPERS LCD |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,680.00 |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 49 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 22.9 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 49 cm |
| Height | 8.9 cm |
| Weight | 22.9 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 62 cm |
| Shipping Height | 24.6 cm |
| Shipping Weight | 27.3 kg |
| Shipping Width | 58.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, RoHS, EN 50091-1, REACH |
| Features | Audible alarm, emergency power off, LCD display, noise filtering |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 285 V |
| Input Voltage Range (Adjustable) | AC 151 - 302 V |
| Output Voltage | AC 230 V 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 800 watt / 1000 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Surge Energy Rating | 600 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
