SMART-UPS X 1000VA RACK/TOWERLCD 120V W/ SMARTCONNECT

Availability: Backorder
SKU
SMX1000C
UPC Code
731304401124
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

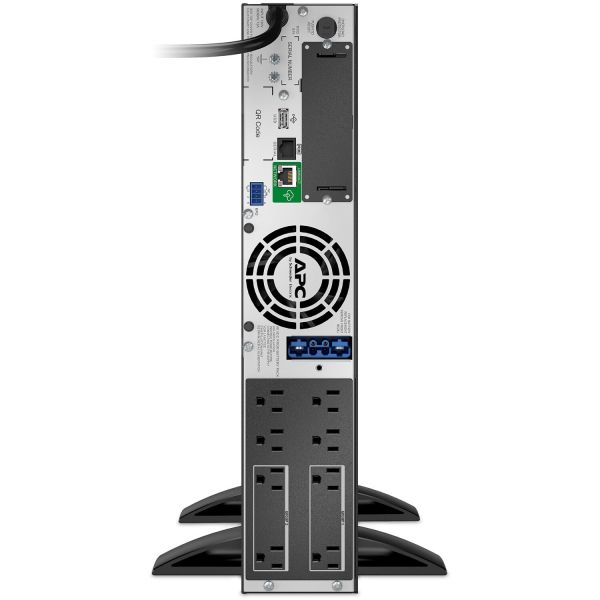

Product image SMX1000C
  • Yes, SMX1000C supports up to 5 SMX48RMBP2U battery packs.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
General Information
CategoryPower conditioning equipment
DescriptionSMART-UPS X 1000VA RACK/TOWERLCD 120V W/ SMARTCONNECT
ManufacturerAPC by Schneider Electric
MSRP$1,290.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth49 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight22.9 kg
Dimensions & Weight / Width8.9 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)1000 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
FeaturesMaintenance free, sealed, leak-proof
Run Time (Up To)
  • 8 min at full load
  • 19.7 min at half load
  • 52.67 min at 200 Watts
  • 17.85 min at 500 Watts
  • 11.47 min at 700 Watts
TechnologyLead acid
TypeExpandable
Dimensions & Weight
Depth49 cm
Height43.2 cm
Weight22.9 kg
Width8.9 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission45 dBA
Expansion / Connectivity
Expansion Slots1 SmartSlot
Interfaces
  • 1 x management (USB)
  • 1 x EPO (emergency power off)
  • 1 x serial - RJ-45
  • 1 x management (Ethernet) - RJ-45
  • SmartConnect
General
Bundled withAPC SmartConnect
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables IncludedPower cable - integrated
Compliant StandardscUL, UL 1449, UL 1778, FCC Part 15, RoHS, REACH
FeaturesUser-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries, Green Function, EcoStruxure Ready, 2 switched outlet groups
Included AccessoriesTower stand
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet, USB, serial
Remote Management ProtocolDHCP, IPv4
Power Device
Circuit ProtectionCircuit breaker
Efficiency98.86% at 100% Green mode (on-line)
Frequency Provided50/60 Hz
Frequency Required47 - 63 Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Input Voltage RangeAC 82 - 144 V
Input Voltage Range (Adjustable)AC 75 - 154 V
Input Wiring1-phase
Output VoltageAC 120 V ± 2% - 50/60 Hz
Power Capacity900 watt / 1000 VA
Power Factor (PF)0.9
Power Output Connectors Details8 x power NEMA 5-15R
Surge Energy Rating540 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Sustainability Information
ENERGY STARYes
Packaging Recycled ContentMade of recycled cardboard
