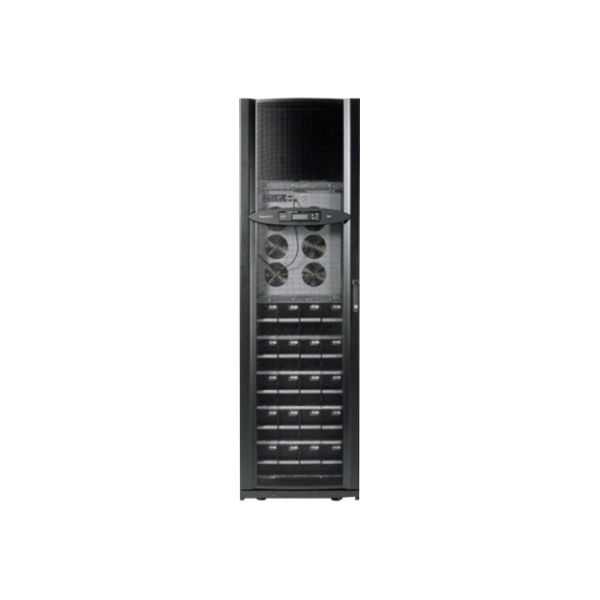

SMART UPS VT 30KVA RM 208V WITH5 BATT MODULE WITH PDU

Be the first to review this product

Availability: Out of stock

SKU

SUVTR30KF5B5S

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Effective 10-40kVA 3 phase UPS power protection against downtime and data loss for mission critical applications.

Specifications

General Information
Category	Power conditioning equipment
Description	SMART UPS VT 30KVA RM 208V WITH5 BATT MODULE WITH PDU
Manufacturer	APC by Schneider Electric
MSRP	$27,165.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	108 cm
Dimensions & Weight / Height	200 cm
Dimensions & Weight / Weight	838 kg
Dimensions & Weight / Width	60 cm
General / Subcategory	UPS
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	6
Power Device / Power Capacity (VA)	30000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 208/220 V
Product Type	Power array
Service & Support / Type	1-year warranty
Battery
Quantity	5 (installed) / 5 (supported)
Recharge Time	3 hours
Run Time (Up To)	13.7 min at full load
Technology	Lead acid
Dimensions & Weight
Depth	108 cm
Height	200 cm
Weight	838 kg
Width	60 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	108 cm
JTFpping Height	200 cm
JTFpping Weight	873 kg
JTFpping Width	60 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	58 dBA
Expansion / Connectivity
Interfaces	1 x management (Ethernet) - RJ-45
General
Battery Enclosure Type	Internal
Color	Black
Device Type	Power array - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year Installation
Miscellaneous
Cables Included	Serial cable - external
Compliant Standards	ISO 9001, cUL, UL 1778, ISO 14001
Features	Audible alarm, emergency power off, LCD display, built-in maintenance bypass, built-in static bypass
Networking
Remote Management Interface	Ethernet 10/100
Remote Management Protocol	SNMP, Telnet, HTTP
Power Device
Circuit Protection	Circuit breaker
Frequency Provided	60 Hz
Frequency Required	40 - 70 Hz
Input Connectors	1 x hardwire 5-wire (3PH + N + G)
Input Voltage	AC 208/220 V
Input Voltage Range	AC 165 - 240 V
Input Wiring	3-phase
Output Voltage	AC 120/208/220 V ± 5% - 60 Hz
Output Waveform	Sinewave
Power Capacity	24 kW / 30000 VA
Power Output Connectors Details	1 x hardwire 5-wire (3PH + N + G) 5 x power NEMA L21-20
UPS Technology	On-line
Software / System Requirements
Software Included	Drivers & Utilities
