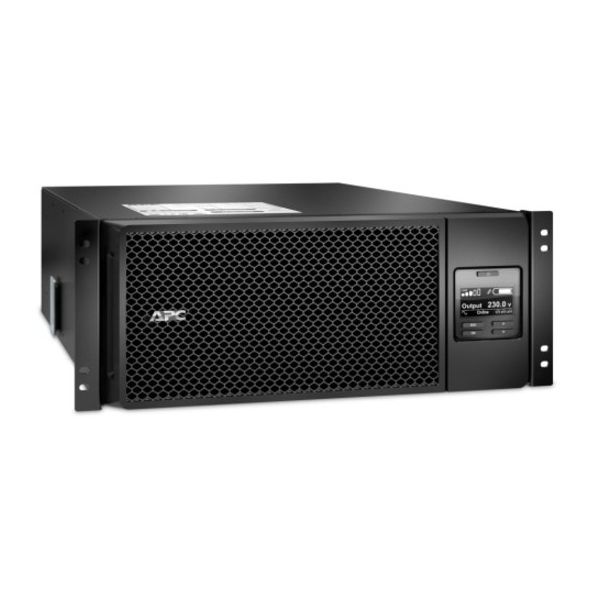

SMART UPS SRT 6000VA RM 230V

Be the first to review this product

Availability: Out of stock

SKU

SRT6KRMXLI

UPC Code

731304308515

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Rack / tower convertible protects the initial investment in the UPS when migrating from tower to rack-mount environment. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

Specifications

General Information
Category	Power conditioning equipment
Description	SMART UPS SRT 6000VA RM 230V
Manufacturer	APC by Schneider Electric
MSRP	$12,720.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	71.9 cm
Dimensions & Weight / Height	17.4 cm
Dimensions & Weight / Weight	60 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	13
Power Device / Power Capacity (VA)	6000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 230 V
Product Type	UPS
Service & Support / Type	3-year warranty
Battery
Features	Maintenance free, sealed, leak-proof
Recharge Time	3 hours
Run Time (Up To)	1.5 min at full load 8.1 min at half load
Technology	Lead acid
Compatibility Information
Designed For	P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
Dimensions & Weight
Depth	71.9 cm
Height	17.4 cm
Weight	60 kg
Width	43.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	96 cm
JTFpping Height	37 cm
JTFpping Weight	67 kg
JTFpping Width	61 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	55 dBA
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x SmartSlot
Interfaces	1 x management (Ethernet) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off) 1 x serial - RJ-45
General
Color	Black
Device Type	UPS - rack-mountable
Height (Rack Units)	4U
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - batteries - 2 years
Miscellaneous
Compliant Standards	RoHS, REACH, IP20
Features	Audible alarm, LCD display
Included Accessories	Rack mounting rails
Rack Mounting Kit	Included
Networking
Remote Management Interface	Ethernet 10/100, USB
Power Device
Efficiency	98%
Frequency Provided	50/60 Hz
Frequency Required	45 - 65 Hz
Input Connectors	1 x hardwire 3-wire (1PH + N + G)
Input Voltage	AC 230 V
Output Voltage	AC 230 V ± 3% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	6000 watt / 6000 VA
Power Output Connectors Details	6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 2 x IEC connector
Surge Energy Rating	480 joules
Surge Suppression	Yes
UPS Technology	On-line
Software / System Requirements
Software Included	APC PowerChute Business Edition
