SMART-UPS SRT 5000VA RM 230V
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SMART-UPS SRT 5000VA RM 230V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $11,410.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 71.9 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 54.55 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | USB |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |

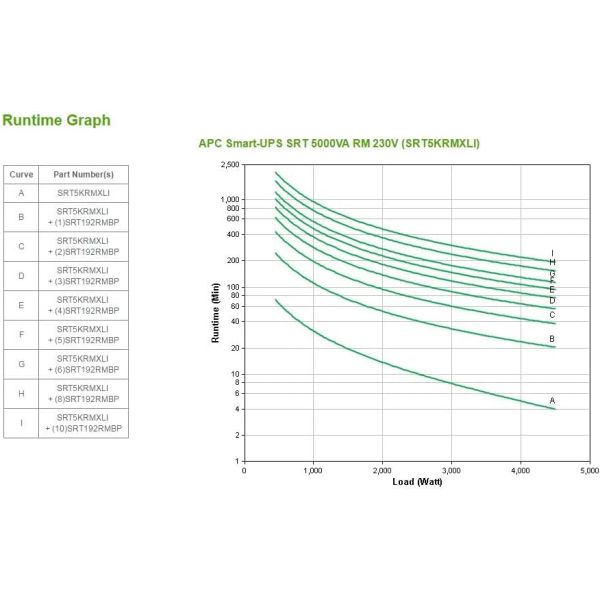

| Run Time (Up To) |
|
| Technology | Lead acid |
| Compatibility Information | |
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2407, AR2480, AR2487, AR2487G, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR8135BLK, NBWL0356A |
| Dimensions & Weight | |
| Depth | 71.9 cm |
| Height | 13 cm |
| Weight | 54.55 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 96 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 63.6 kg |
| Shipping Width | 61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 3U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Features | Audible alarm, LCD display |
| Networking | |
| Remote Management Interface | USB |
| Power Device | |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | Hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4500 watt / 5000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 480 joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
