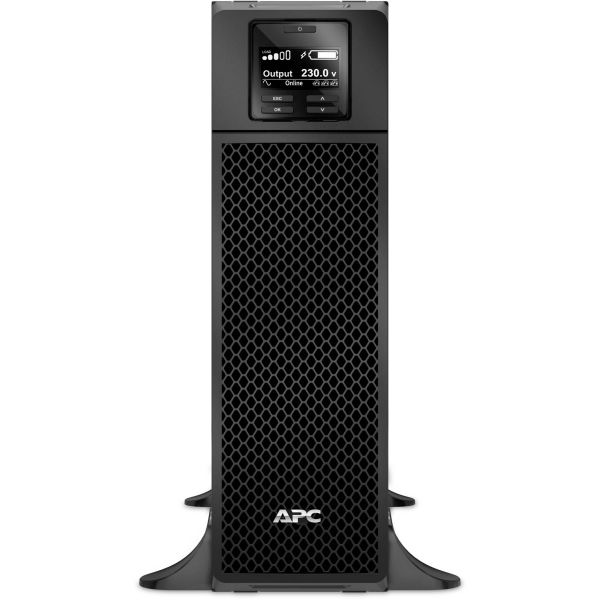

SMART-UPS SRT 5000VA 230V
High density, double-conversion on-line power protection with scalable runtime.
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SMART-UPS SRT 5000VA 230V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $10,945.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 71.9 cm |
| Dimensions & Weight / Height | 43.2 cm |
| Dimensions & Weight / Weight | 54.55 kg |
| Dimensions & Weight / Width | 13 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 12 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Compatibility Information | |
| Designed For | P/N: SRT192RMBPM |
| Dimensions & Weight | |
| Depth | 71.9 cm |
| Height | 43.2 cm |
| Weight | 54.55 kg |
| Width | 13 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 96 cm |
| JTFpping Height | 33 cm |
| JTFpping Weight | 63.5 kg |
| JTFpping Width | 61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 3U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Features | Audible alarm, LCD display |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Power Device | |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 1 x hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4500 watt / 5000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 480 joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
