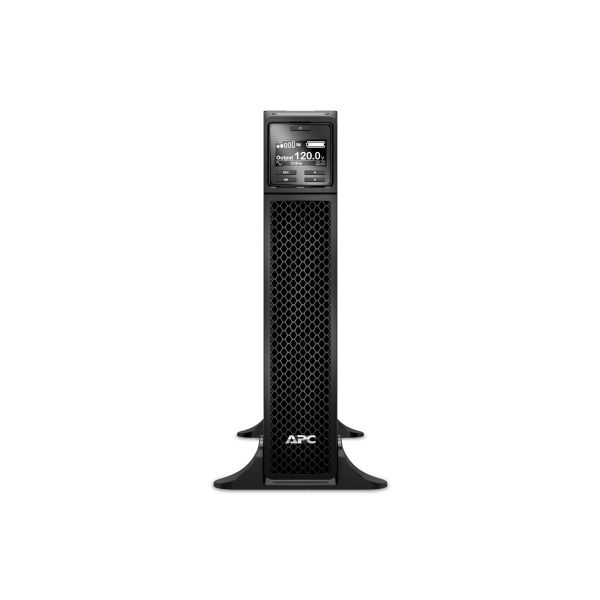

Smart Ups Srt 2200Va 120V
- Yes, Smart-UPS Ultra SRT2200XLA supports up to 10 APC external SRT72BP battery packs.:
- Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Software.:
- PowerChute Network Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
- PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Smart Ups Srt 2200Va 120V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,070.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 58.4 cm |
| Dimensions & Weight / Height | 43.2 cm |
| Dimensions & Weight / Weight | 25 kg |
| Dimensions & Weight / Width | 8.5 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Voltage Provided | 72 V |
| Compatibility Information | |
| Designed For | P/N: SRT72BP |
| Dimensions & Weight | |
| Depth | 58.4 cm |
| Height | 43.2 cm |
| Weight | 25 kg |
| Width | 8.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 81 cm |
| Shipping Height | 24.6 cm |
| Shipping Weight | 30.84 kg |
| Shipping Width | 59.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 1.8 m |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | IP20, CSA C22.2 No.107.3-05, FCC Part 15 A, UL 1778, RoHS, REACH |
| Features | LCD display, hot-swappable batteries, energy meter, audible alarm, automatic self-test, generator compatible, cold-start function, lightning protection, LED indicators, reset breaker, auto restart, internal bypass |
| Included Accessories | Tower stand |
| Pricing Type | APC Take-Back |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 87.7% at 25% Load, 91.1% at 50% Load, 91.7% at 100% Load, 91.7% at 75% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Input Voltage | AC 120 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1800 watt / 2200 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 340 joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | APC PowerChute |
| Sustainability Information | |
| ENERGY STAR | Yes |
