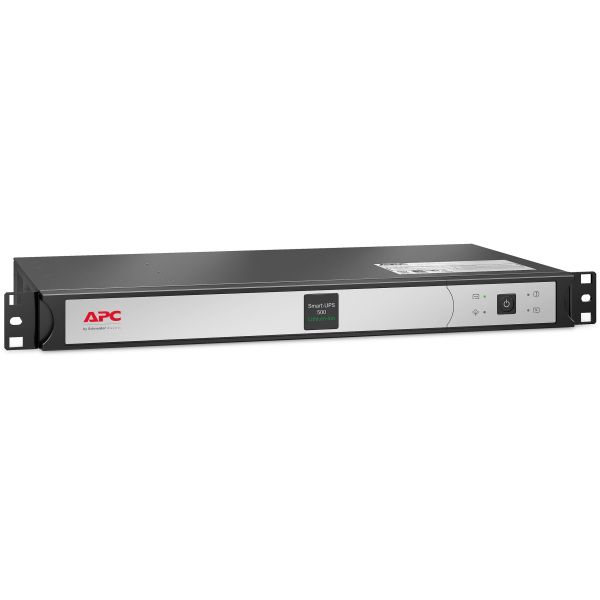

Smart-Ups C Lithium Ion Short Depth 500Va 120V With Smartconnect
- The Lithium-Ion batteries used in Smart-UPS can last 8 to 10 years or 3000
charge/discharge cycles. Valve Regulated Lead
Acid (VRLA) batteries typically last 3 to 5 years or 200 discharge cycles.: - No. Smart-UPS with Lithium-ion batteries are up to 65% lighter than Lead Acid VRLA UPS.:
- No. Batteries for Smart-UPS with Lithium-ion are not compatible with Smart-
UPS with VRLA batteries.: - There is a 5-year warranty for both the electronics and the internal batteries.:
- All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Smart-Ups C Lithium Ion Short Depth 500Va 120V With Smartconnect |
| Manufacturer | APC by Schneider Electric |
| MSRP | $764.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.2 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.7 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 500 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Technology | Lithium ion |
| Dimensions & Weight | |
| Depth | 23.2 cm |
| Height | 4.4 cm |
| Weight | 3.7 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.2 kg |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | NOM, UL 1449, UL 1778, CSA C22.2 No. 107.1, RoHS, FCC Part 15 A, REACH, IP20 |
| Features | User-replaceable removable battery, audible alarm, LCD display |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Efficiency | 96% at 10% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | Power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 92 - 139 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 400 watt / 500 VA |
| Power Output Connectors Details | 4 x power NEMA 5-15R |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Sustainability Information | |
| Packaging Recycled Content | Made of recycled cardboard |
