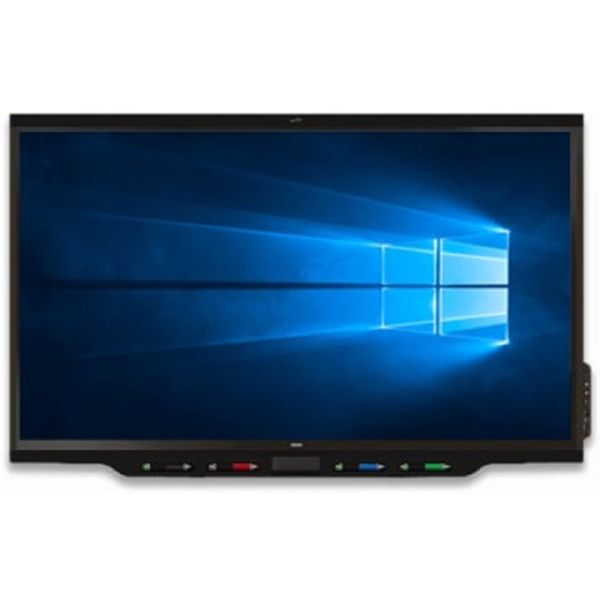

SMART SBID-7375P-I5 Pro Interactive Display w/ IQ Technology

• Pro Interactive Display w/ IQ Technology
• Screen Size 75"
• Width 69"
• Height 43 1/8"
• Depth 4 7/8"
• Weight 174 lb.
• Display Type LED
• Aspect ratio 16:9
• Optimal resolution 3840 × 2160 at 60 Hz
• Contrast ratio (typical) 5000:1
• Brightness 360 cd/m²
• Pixel dimensions 0.429 mm × 0.429 mm
• Viewing angle 178°

SMART SBID-7375P-I5 Pro Interactive Display w/ IQ Technology

• Type	75" interactive LED
  Dimensions & Weight
  Screen Size	75"
  Width	69"
  Height	43 1/8"
  Depth	4 7/8"
  Weight	174 lb.
  Hardware
  Interaction
  Touch technology	HyPr Touch (Hybrid Precision Touch) proprietary hybrid system, which greatly improves upon its InGlass core by optimizing both touch and pen performance, resulting in virtually no lag and zero contact detect height
  Multitouch capabilities	Up to 16 simultaneous interaction points (combination of 10 finger touch points, four pen touch points and two eraser touch points)
  Object Awareness	Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser or palm.
  Pen ID	Four people can write independently and simultaneously, using different colored ink.
  Display
  Type	LED
  Aspect ratio	16:9
  Optimal resolution	3840 × 2160 at 60 Hz
  Horizontal frequency (typical)	135 kHz
  Vertical frequency (typical)	60 Hz
  Contrast ratio (typical)	5000:1
  Brightness	360 cd/m²
  Pixel dimensions	0.429 mm × 0.429 mm
  Gamut	72% of NTSC
  Viewing angle	178°
  Response time (typical)	8 ms
  1000BASE-T Ethernet	Two external ports for a four-port Gigabit Ethernet switched network connecting the interactive display and the iQ appliance to an external network and an external device, such as a computer
  Presence detection	Dual sensors that reduce startup time and power consumption during inactivity
  Audio	10 W integrated speakers (×2)
  Noise level	<30 dBA
  Included cables and accessories	iQ appliance Intel Compute Card Country-specific power cable USB cable Pen (×4) Eraser iQ appliance
  iQ appliance
  Wireless technology	Bluetooth 4.0 dual mode (backwards compatible with Bluetooth 2.1 + EDR)
  Capture options	Establish a Bluetooth wireless connection with a supported mobile device (see below) by scanning the interactive display’s unique QR code
  Intel Compute Card features	See iQ appliance with Intel Compute Card for SMART Board interactive displays specifications (smarttech.com/kb/171263)
  Supported languages	French German Italian Japanese Korean Norwegian Simplified Chinese Spanish Swedish Traditional Chinese
  Mounting holes	For a standard VESA® 600 mm × 400 mm mounting plate Lower mounting holes 13 3/4" (35 cm) from the bottom of the interactive display
  Mounting bracket depth	Minimum depth of 2" (5.1 cm) for all components on the back of the interactive display for airflow
  Connectors
  Connector panel	OPS slot (for the iQ appliance) Stereo 3.5 mm out S/PDIF out VGA input connectors  - VGA in  - Stereo 3.5 mm in  - USB Type-B HDMI 1 input connectors  - HDMI 2.0 in  - USB Type-B Display Port input connectors  - DisplayPort in  - USB Type-B USB Type-A2 RJ45 (×2)
  Convenience panel	HDMI 2 input connectors  - HDMI 1.4 in  - USB Type-B USB Type-A (×2)
  Bottom	AC power in AC power out RS-232 in RS-232 out
  HDCP support	Version 1.4/2.2
  Installation Requirements
  Interactive display	See the SMART Board 7000 and 7000 Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171164)
  SMART kapp app
  Apple devices	iOS 9 or later operating system software 50 MB of storage iPhone 4S or later Third-generation iPad or later First-generation iPad mini or later Fifth-generation iPod touch or later
  Android devices	Android 4.4.4 (KitKat) or later operating system 50 MB of storage (internal or SD card) 1024 MB of RAM 720p or better screen resolution Bluetooth 2.1 + EDR 3 megapixel or better rear-facing camera (recommended) SMART kapp viewer
  Mobile	Safari for iOS 9 or later operating system software
  Chrome for Android 39.0.2171.93 or later
  Desktop	Internet Explorer 10 or later Chrome 39.0.2171.95 or later Firefox 34.0.5 or later Safari 8.0 or later
  Room computers and guest laptops
  4K UHD	Graphics card that can support 3840 × 2160 resolution at 60 Hz and that has 1 GB DDR 5 memory
  Mini-computers
  Dimensions	10" × 10" × 2"
  Weight	10 lb.
  Mounting	VESA 75 mm × 75 mm or 100 mm × 100 mm mounting pattern
  Cable Requirements
  HDMI	Maximum length: 23' (7 m)
  DisplayPort	DisplayPort 1.2 compliant or better Maximum length: 23' (7 m)
  USB	Maximum length: 16' (5 m)
  Storage and Operating Requirements
  Power requirements	100V to 240V AC, 50 Hz to 60 Hz
  Interactive display and iQ appliance power consumption at 77°F (25°C)
  Standby mode	22–24 W
  Normal operating	160 W
  Maximum operating	173 W
  Standalone interactive display power consumption at 77°F (25°C)
  Standby mode	1.8 W
  Normal operating (out-of-box)	135 W
  Operating temperature	41–95°F (5–35°C)
  Storage temperature	-4–140°F (-20–60°C)
  Humidity	5–80% relative humidity, non-condensing
